Safety Functions

- 64 -

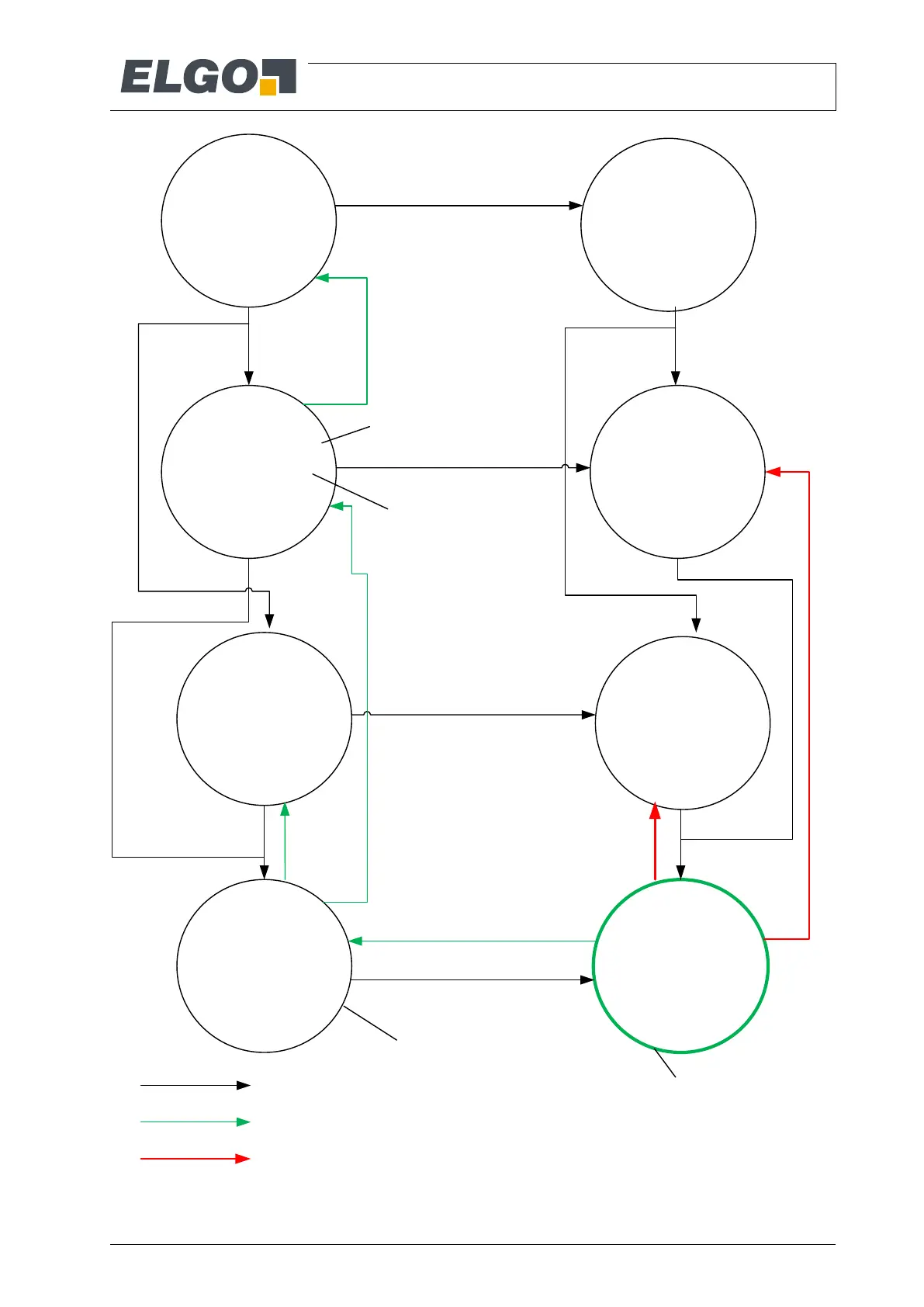

Figure 21: Conditions for door bridging and UCM

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

Zone condidition

Speed condition

CAN-Condition

UCM

Red arrows: door briding (SR closed) is not left in the

anticipated way => UCM

Green arrows: door briding (SR closed) is left in the

anticipated way => OK

Black arrows: entering door bridging

Green circle: SR closed

(door bridged)

black circles: SR open

Gray: condition not fulfilled

Black and bold

condition fulfilled

Default Chapter3
