ELIT EuroMaster AutoEv - Input Terminals; Back Panel Identification

EuroMaster AutoEV
11
5
6
1
4
3
2
5.2. Terminal.

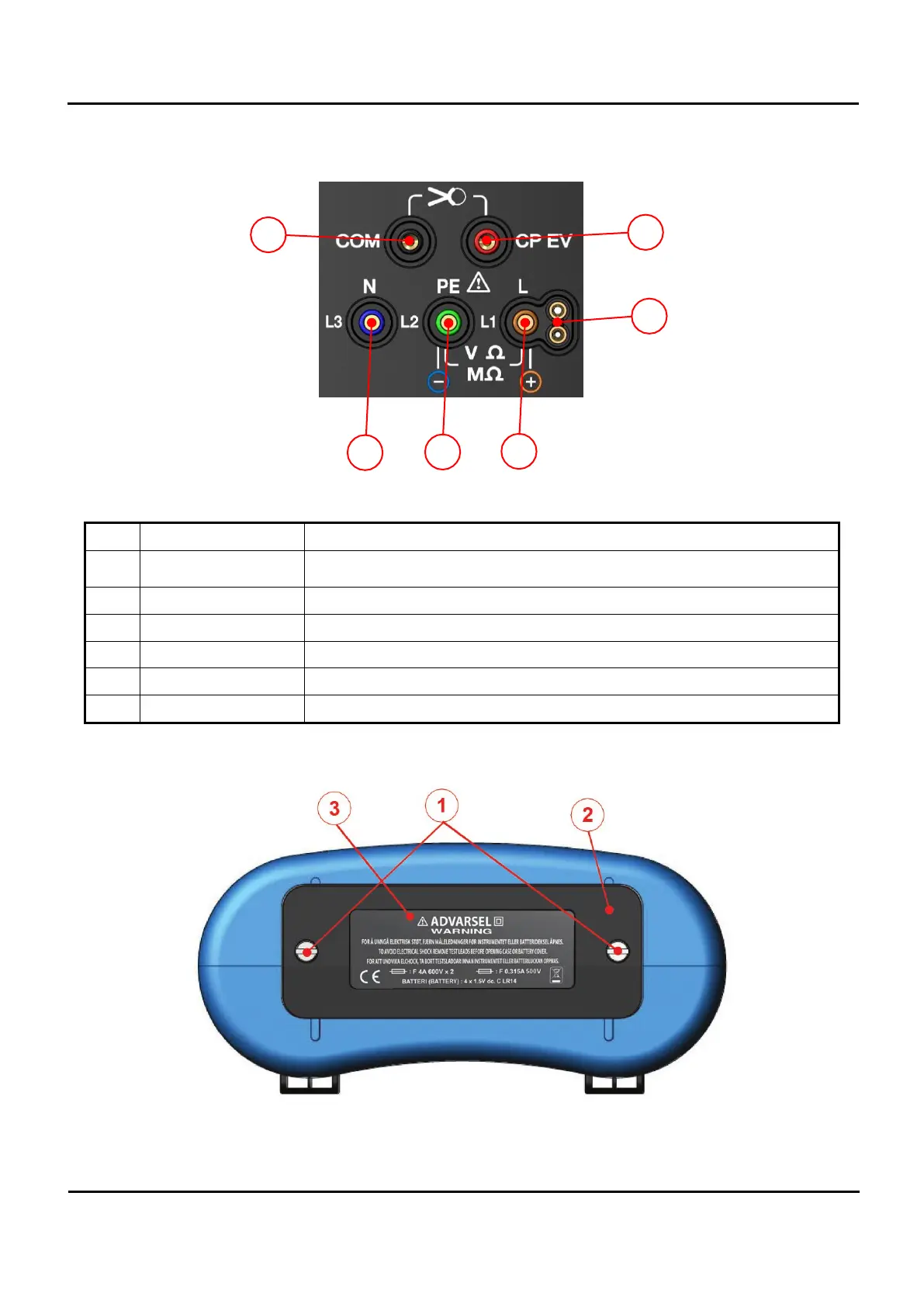

Figure 5.2 Input terminal.
No. Description Explanation.
1
Extension switch of
the test button
Extended test button terminal when PC-2 commander is connected.
2 Line terminal Terminals used in Volt, Z-line, RCD, Riso, LowOhm, Earth functions
3 PE terminal Terminals used in Volt, Z-line, RCD, Riso, LowOhm, Earth functions
4 Neutral terminal Terminals used in Volt, Z-line, RCD, Riso, LowOhm, Earth functions
5 COM terminal Terminals Used in LowOhm, EV, and Adaptor Functions
6 ADP or CP Adaptor, terminal used in EV function
5.3. Back side
Figure 5.3 Back side.
