ELIT EuroMaster AutoEv - RCD Test Procedures

EuroMaster AutoEV
26
L
N
PE
N(Blue)
L (Brown)
PE (Green)
RCD
6.6. RCD
 RCD F1-F5 Menu
Button 1 2 3 4 5 6 7
F1 Ramp Uc Auto 1/2x 1x 2x 5x
F2 10mA 30mA 100mA 300mA 500mA 1A
F3 AC A A+6mA B
F4 General Selective
F5 TN-net IT-net
 RCD / Ramp

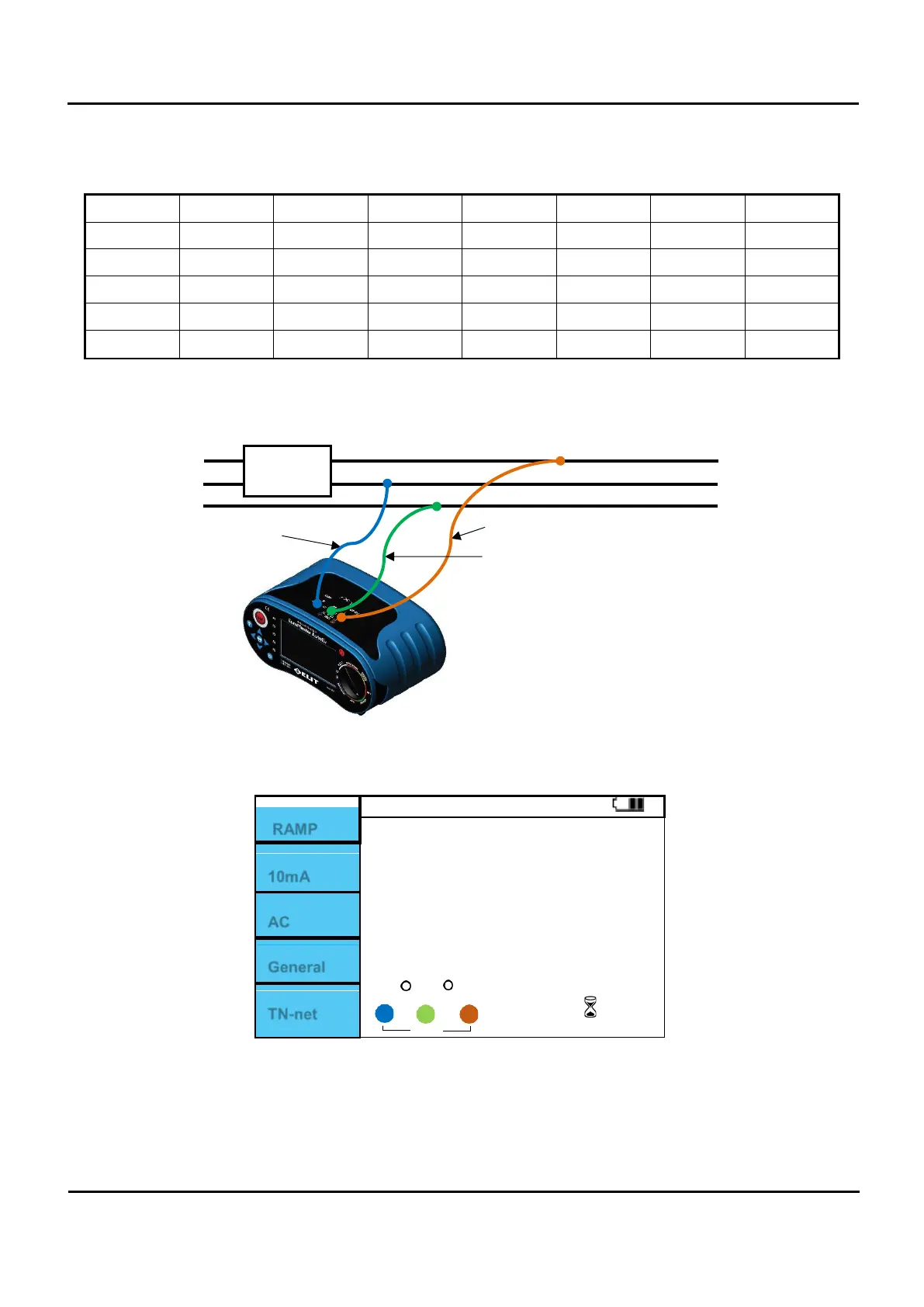

Figure 6.6.1 RCD Connection.
RAMP
RCD
10mA
----
mA
---- mS
AC
General
Uc: -------
V
Ri: -------- Ω
0
OK
TN-net
1 230
229
Figure 6.6.2 RCD / Ramp screen.
