6.11. Auto function
Auto 1
TEST 1
Zline L-N
10A/B/Ips 0.76
psc --- A / --- Ω
Loop L-PE
Hi Amp
--- Ω
Zline L-N
10A
RCD x1
R-ISO
30mA/AC/General
500V / L-N / 1 M
--- mS / --- mS
---- MΩ
B
0
Ips 0.76
0
0
0

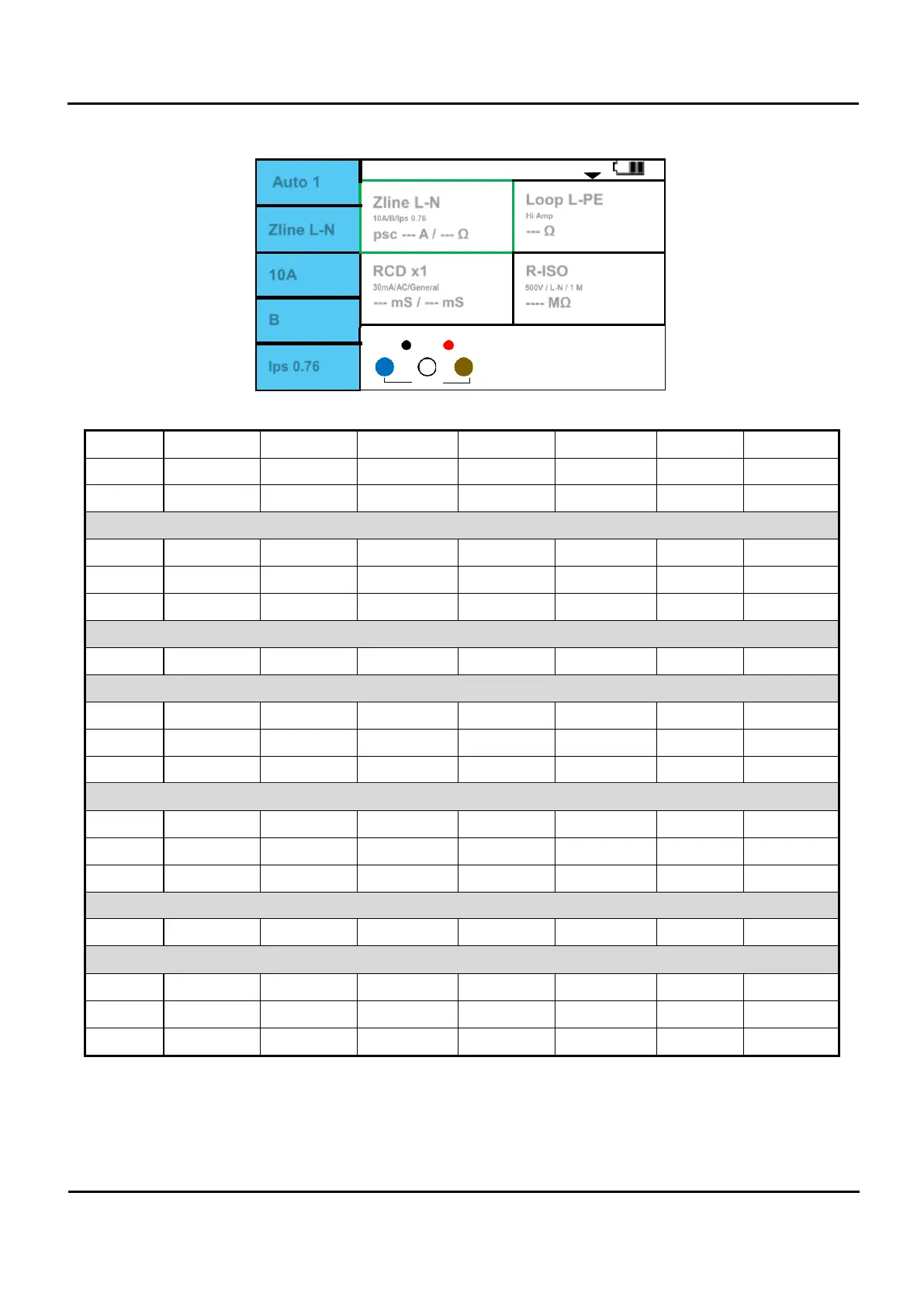

Figure 6.11.1 Auto test screen.
Button 1 2 3 4 5 6 7
F1 Auto 1 Auto 2 Auto 3 Auto 4 Auto 5
F2 Zline L-N Loop L-PE RCD RAMP RCD x1
R-LOWOHM
R-ISO NO TEST
F2: Zline L-N
F3 10A 13A 15A 16A 20A 25A 32A
F4 B C D gQ IL
F5 Ips0.38 Ips0.76 Ips1.15
F2: Loop L-PE
F3 No Trip Hi Amp
F2: RCD RAMP
F3 10mA 30mA 100mA 300mA 500mA 1A
F4 AC A A+6mA B
F5 General Selective
F2: RCD x1
F3 10mA 30mA 100mA 300mA 500mA 1A
F4 AC A A+6mA B
F5 General Selective
F2: R-LOWOHM
F3 PE-COM PE-L
F2: R-ISO
F3 250V 500V 1000V
F4 L-N L-PE N-PE
F5 1 M 10 M 100 M
Table 6.11.1 F1-F5 Button settings.
