ELIT EuroMaster AutoEv - Battery and Fuse Compartment

EuroMaster AutoEV
12
5
4
6
1
2
3
No. Description Explanation.
1 Screw Screw fixing battery cover.
2 Battery Cover Cover to protect battery and fuse.
3 Warning label Precautions and Fuse Specifications and Battery Specifications.
5.4. Battery and Fuse side

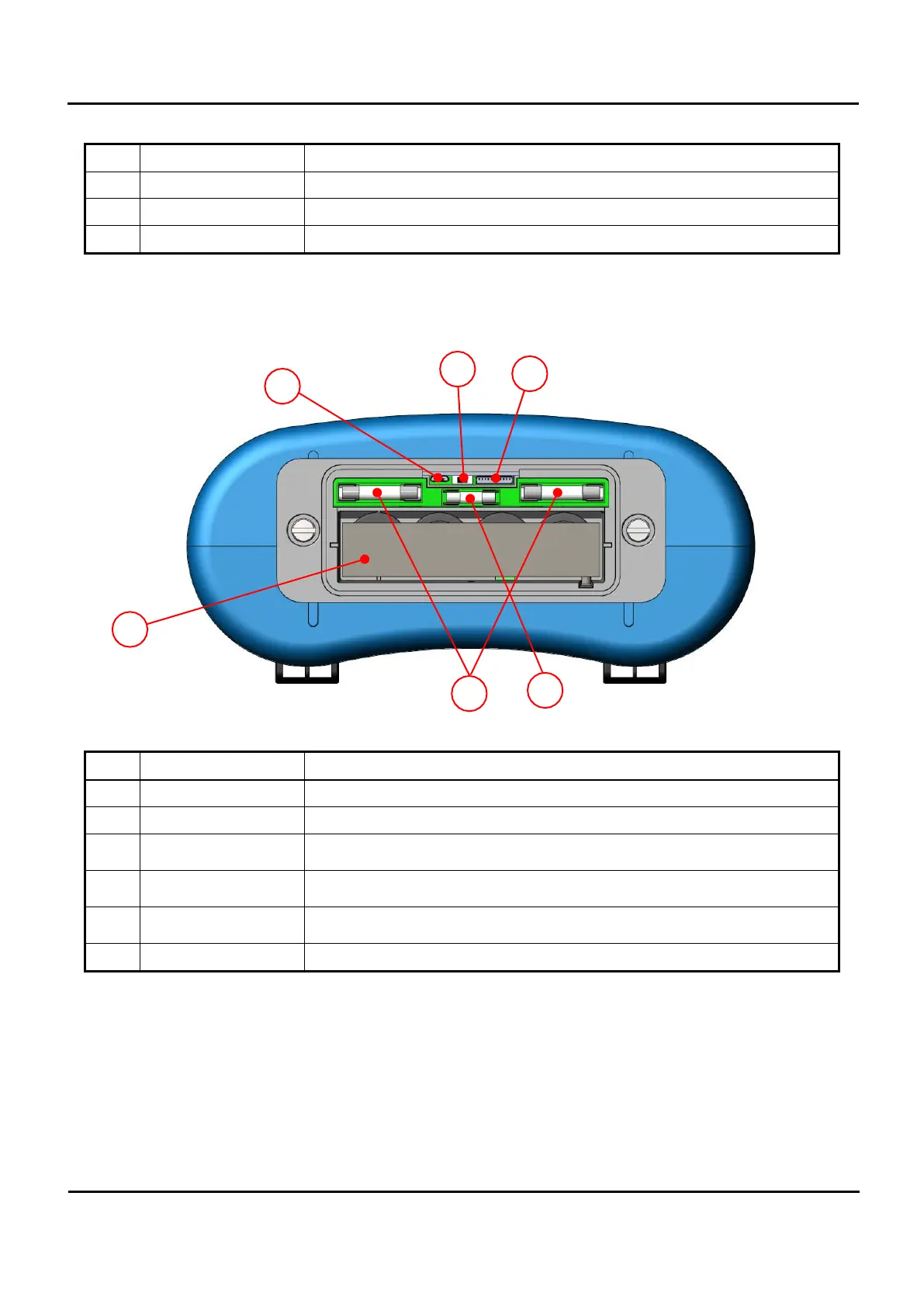

Figure 5.4 Battery and Fuse side.
No. Description Explanation.
1 Battery Holder Battery holder of 1.5V x 4 C size.
2 2A Fuse 2A / 600V Fast Fuse. It is connected to L and N terminals.
3 0.315A Fuse
0.315A / 500V Fast Fuse. Fuse used for protection in LowOhm, Earth R, and
Adapter functions.
4 Micro USB
It is for Firmware Upgrade. Place the slide switch  and proceed with the
upgrade.
5 Slid switch
It is used when firmware upgrade.  direction is the position when operating
normally and  is the position when upgrading.
6 Graphic upgrade Used to upgrade the graphic. Upgrade using dedicated equipment.
