Warning
If the voltage you are trying to measure is more than 550V, do not try to measure it.
Test probe & test lead wire shall comply with EN 61010-031:2015. CAT III 600V or better.
6.4. Voltage / Phase sequence.
 Voltage frequency measurement.
L - N
VOLT
LN
- - -
V
Lowz off
LPE
- - -
V
NPE
- - -
V
Hz: >500.0Hz
0
TN-net
0 0
0

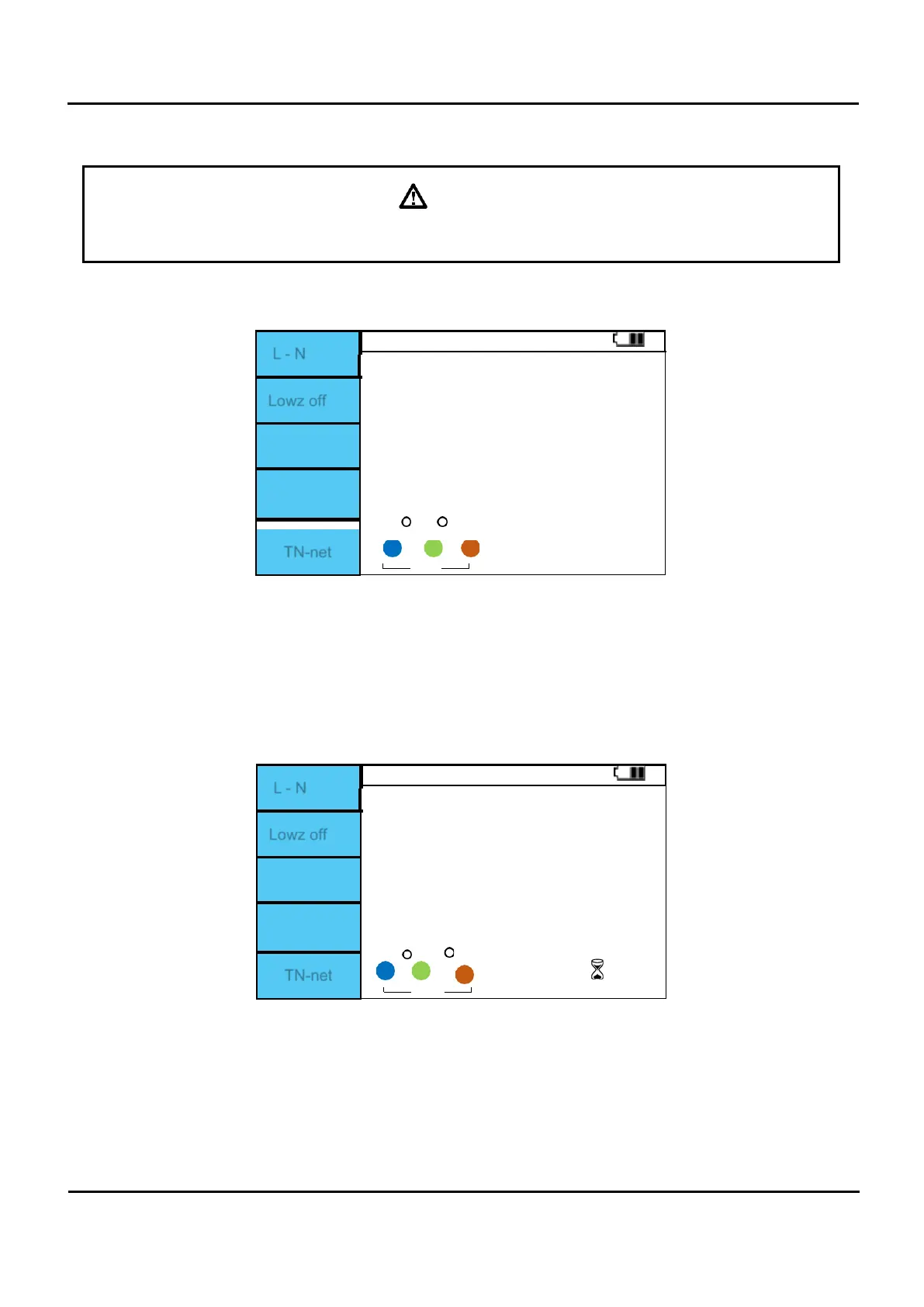

Figure 6.4.1 Voltage screen.
I. Set the rotary switch to Voltage.
II. Connect the test leads to the input terminals L, N, and PE.
III. Connect the test leads to the measurement point.
IV. Press the Test button to start measurement.
L - N
VOLT
LN
230
V
Lowz off
LPE
229
V
NPE
0
V
Hz: 50.0Hz
0
0
0
TN-net
0
Figure 6.4.2 Voltage measurement screen.
V. The measured voltage is displayed on the screen and the frequency is displayed at the bottom.
VI. Pressing the Test button starts the measurement and pressing the Test button again stops the
measurement.
