warning
Measure only on equipment and circuits that is de-energized!
6.7.
Insulation.
+ (Brown)

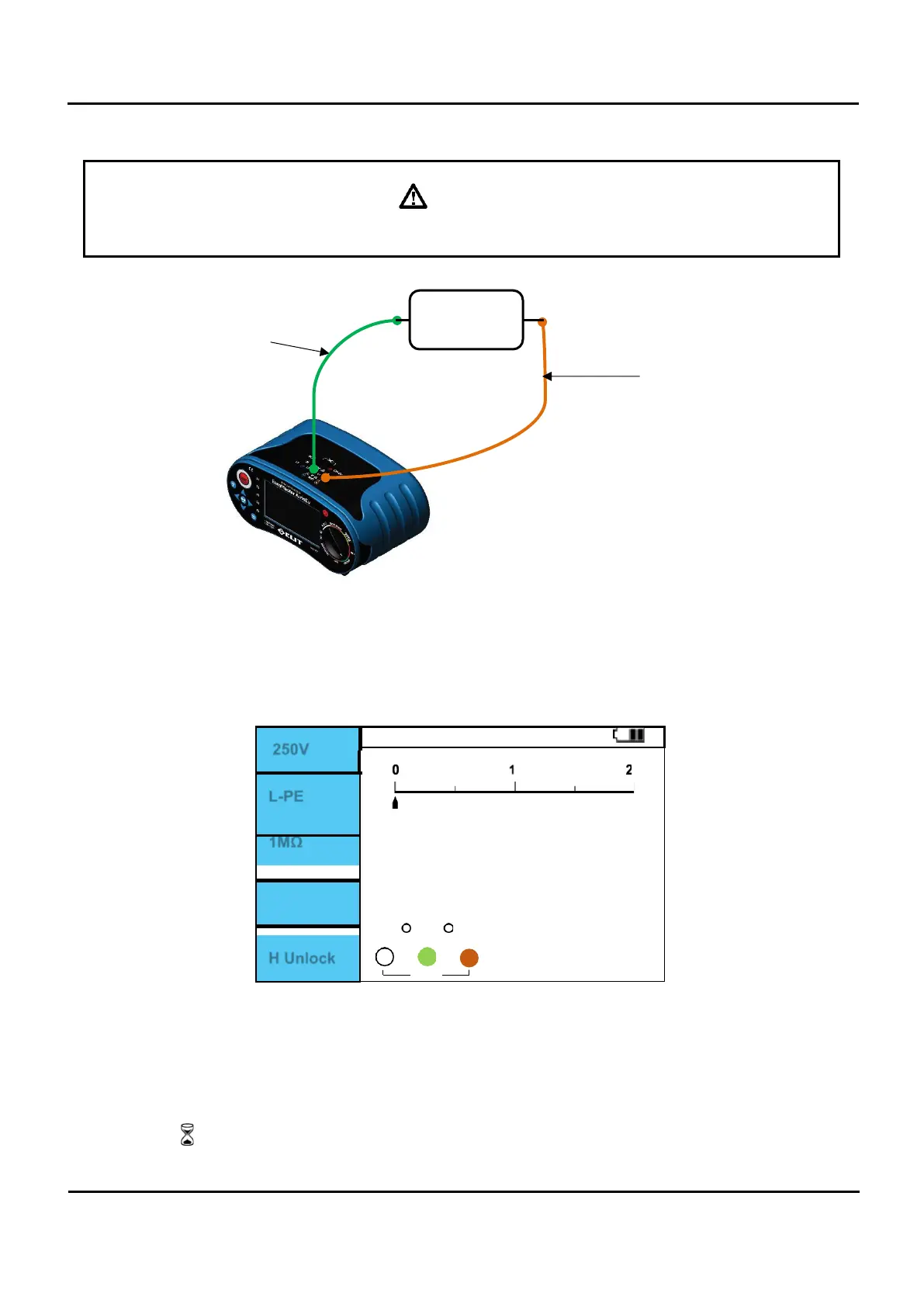

Figure 6.7.1 Insulation L-PE Connection.
250V
L-PE
1MΩ
0
H Unlock
0
0
Figure 6.7.2 Insulation L-PE screen.
I.
Set the rotary switch to Insulation.
II.
Select the output voltage with the F1 button.
III.
Select the terminal to measure with the F2 button. (L-PE, L-N, N-PE).
IV.
Connect the measurement terminal and measurement position.
V.
If there is no voltage induced when connected to the measurement position, press the Test button.
VI.
The symbol being measured is displayed.
VII.
After measuring for about 3 to 5 seconds, the measured value is displayed and stopped.
VIII.
Press the Test button to make a single measurement.
