3.4.3 LAN-ADAPTER CONNECTION

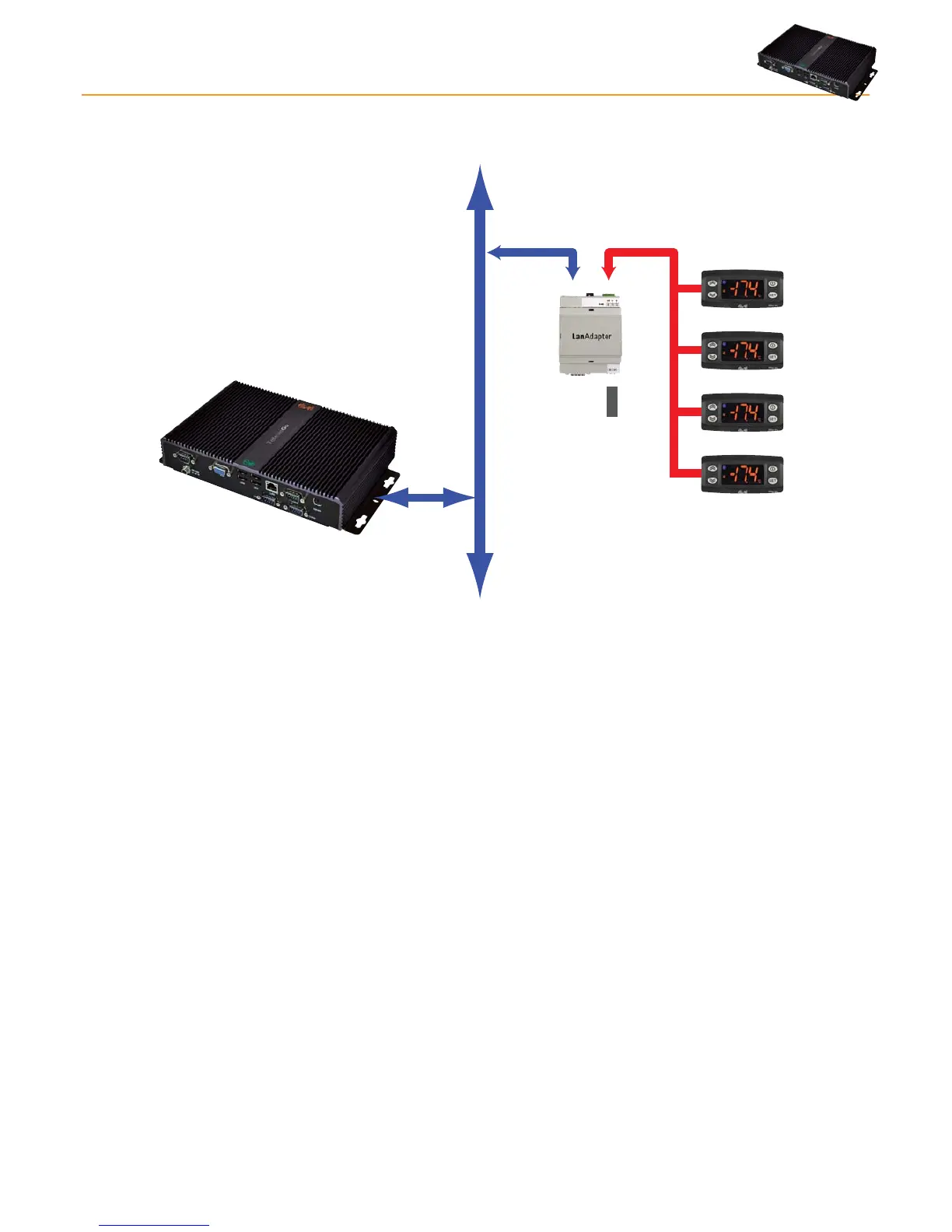

The figure below shows a LAN/Ethernet network.
TCP/IP
100...240 V~
Alimentazione
uNet
Ethernet
RS-485
It features: 1 LanAdapter and 4 ID controllers.
NOTE: Signal propagation in an Ethernet network depends on bus traffic, making access times to the LanAdapter non-
deterministic and potentially influencing access time to the RS485 sub-network.
NOTE: If connection proves difficult, check if the right profile has been assigned to the network; if not, modify accordingly (see
section entitled “Interface definition”)
