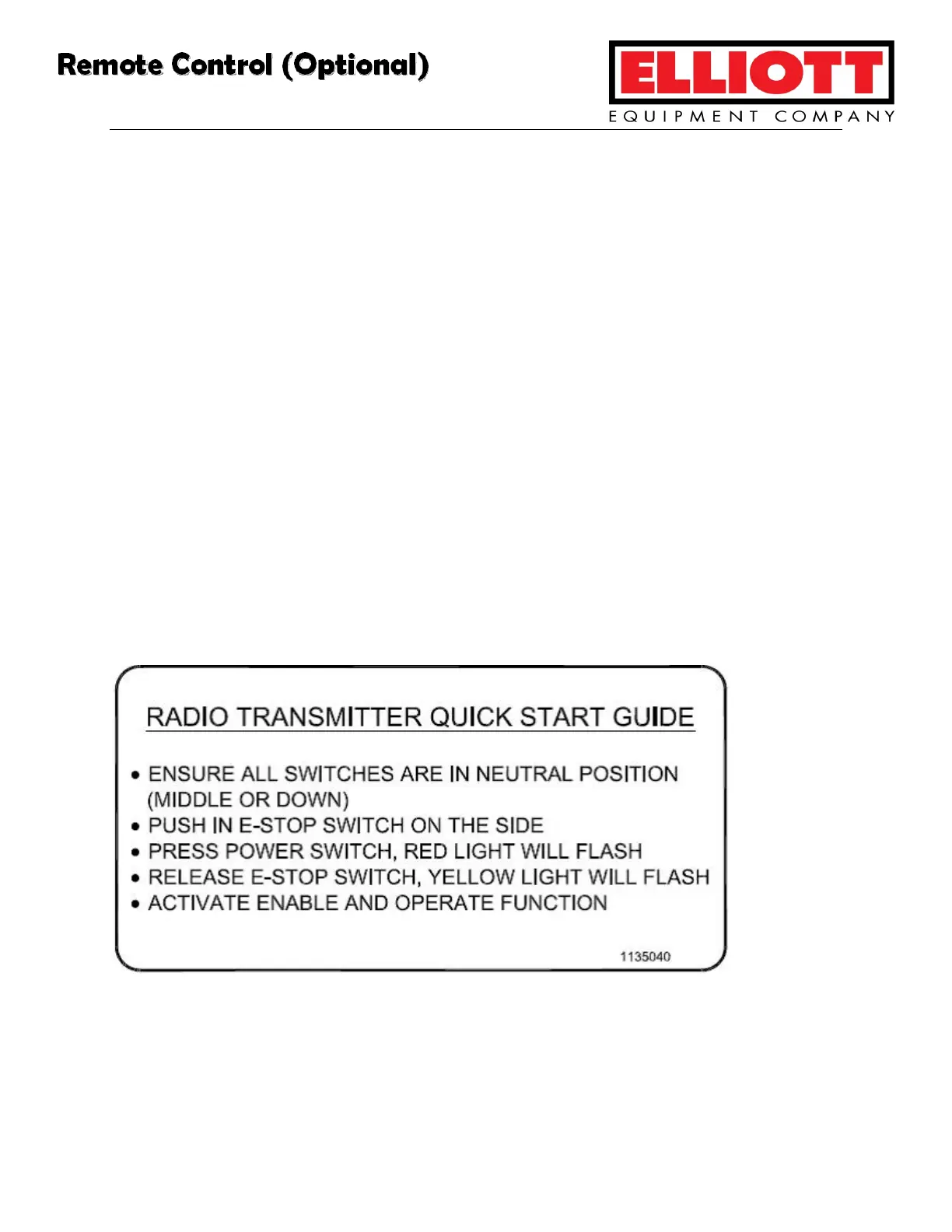

Optional Remote Control EEC-0039 V1.1
Remote Control (Optional)
Aux Winch, Main winch Speed, LMI / ATB function cutout Override and Main Winch
disable, and engine speed.
When the joystick is in the center position, the function is inactive. Moving the
joystick from the center position initiates function movement. The speed of the function
is increased proportionally with the movement of the joystick farther from the center
position. The speed of the function is also decreased proportionally with the movement
of the joystick back towards the center position. For smooth boom & platform operation
slowly meter the joystick away from the center position. Multiple functions can be
operated simultaneously with this system. The layout of the joysticks and switches on
the transmitter are shown in the pictures that follow. Refer to these pictures and the
descriptions of each joystick/switch operation below the drawing.
The proportional joysticks can be calibrated to the operator’s preference by
following calibration procedures found in the component operator’s manual within this
manual.
Elliott remote controls provide the operator with the same load and capacity
information to the operator using the remote controls as if they were operating from the
operator’s cap or platform. This provides the operator in the platform or at the hook
