13

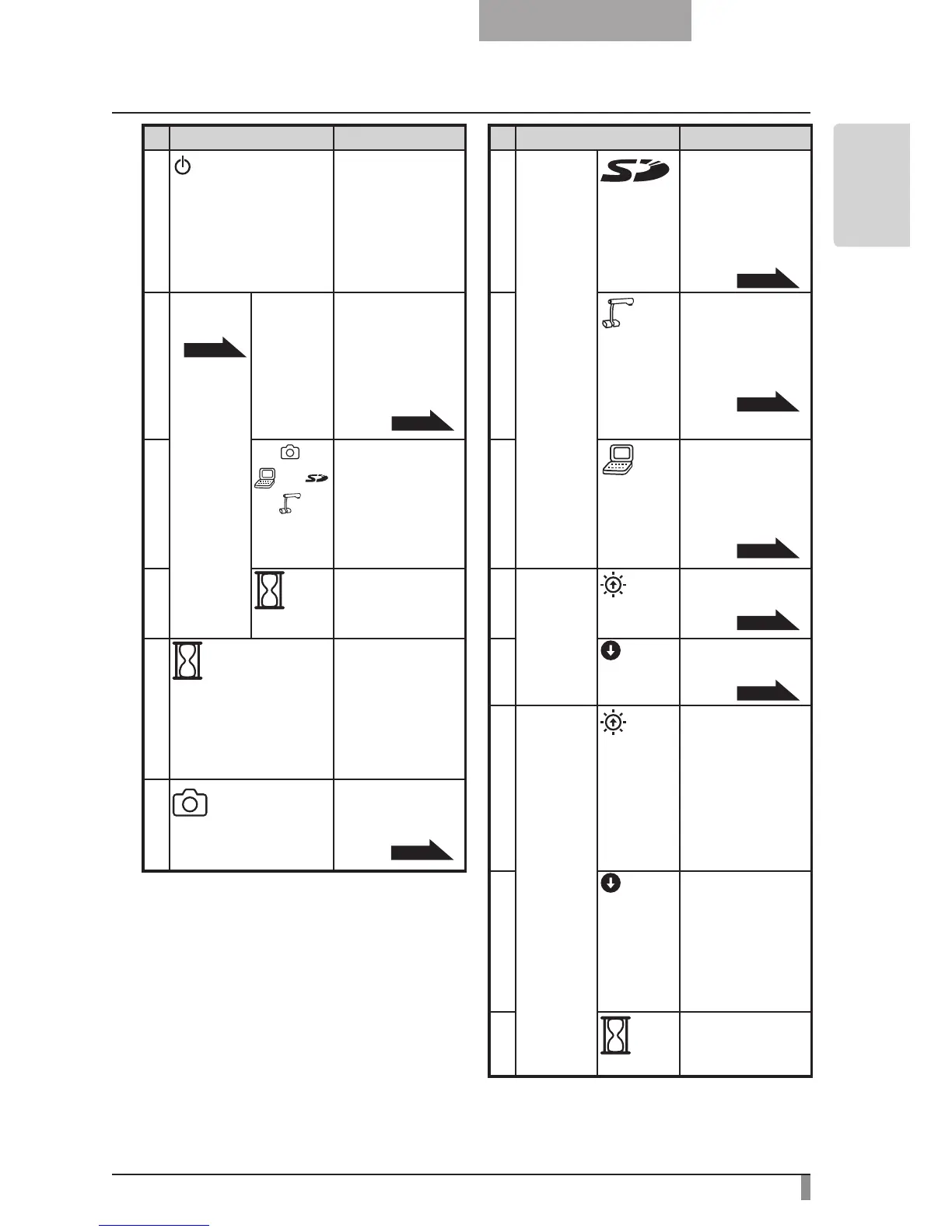

PART
NAMES AND
FUNCTIONS
English
Name Function Name Function
(1)
POWER
(POWER ON/OFF
standby status)
To turn the power
ON/OFF.
Power ON:
Blue lamp
Power OFF
standby status:
Red lamp
(7) Image
select
(SD mode)
To switch the output
image to images
stored on the SD
card.
The SD Mode LED
is lit in SD Mode.
P.54
(2)
OSD
Operation
P.19
MENU
To show/hide the
OSD menu.
The LEDs for op-
eration buttons are
not lit during OSD
menu display.
P.19
(8)
(CAMERA)
To switch the output
image to camera
image.
The LED is lit in
CAMERA mode.
P.54
(3)
(Direction)
To select an OSD
menu item.
(9)
(PC)
To switch the output
image to the image
input to RGB IN.
The LED is lit in PC
mode.
P.54
(4)
(Enter)
To decide the
OSD item.
(10)
Bright-
ness
Adjust
To brighten the
camera image.
P.53
(5)
(Pause)
To pause the
camera image.
Press this button
again to restart.
(11)
To darken the
camera image.
P.53
(12)
SD
mode
operation
Single Display:
Return to the pre-
vious image
4x4 Display:
Move the cursor
to the previous
(6)
(Image save)
To save the im-
age on the SD
card.
P.37
(13)
Single Display:
Move to the next
4x4 Display:
Move the cursor
to the next image
(14)
Change between
Single Display
and 4x4 Display.
