Elmo TT-02RX User Manual

17

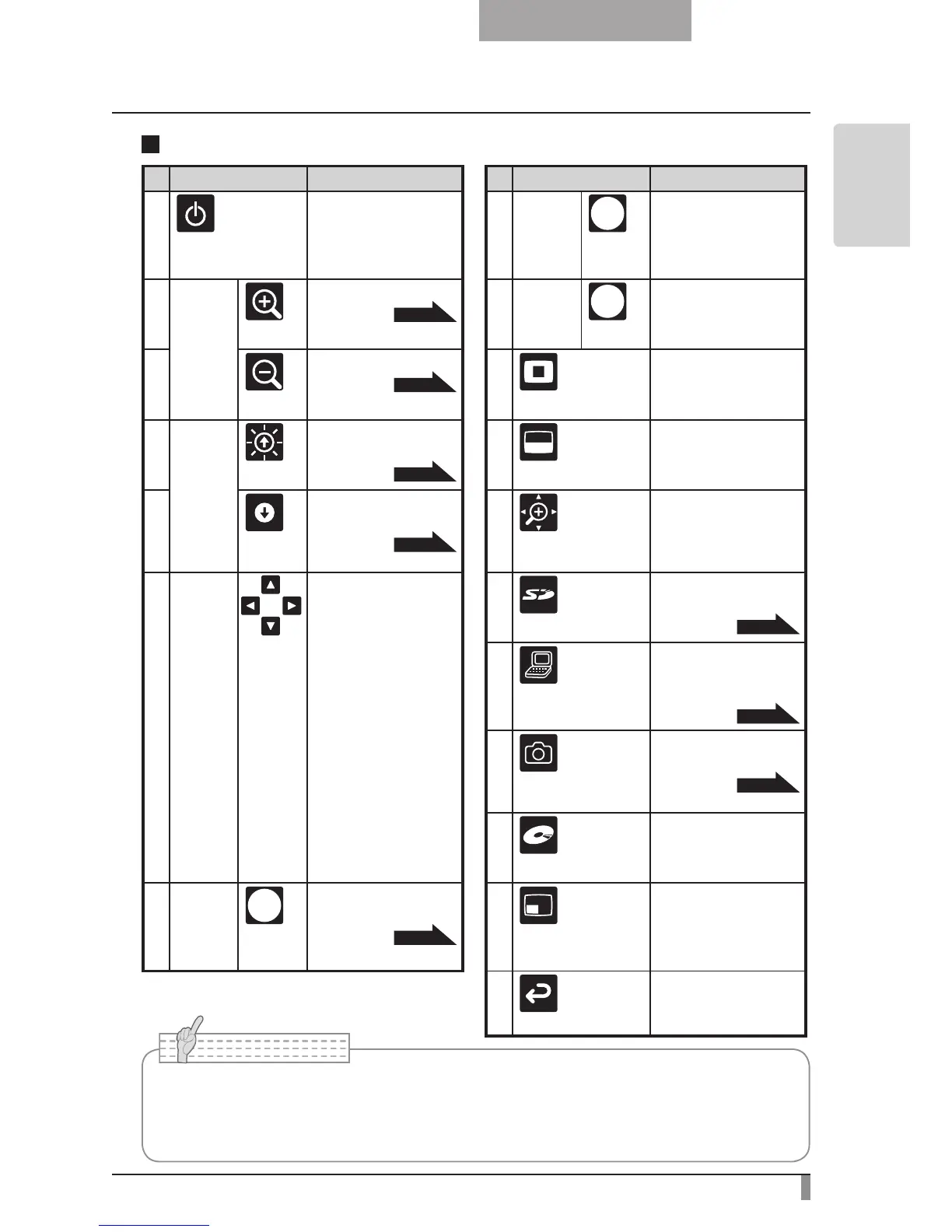

PART
NAMES AND
FUNCTIONS
English
Functions
Name Function Name Function
(1)
(POWER ON/OFF
standby status)
To turn the power
ON/OFF.
(8) SD
Mode
opera-
tions
Change between SD
image single display
and 4x4 display. *1
(2)
ZOOM
(TELE)
To zoom in.
P.49
(9) Recorder
Mode
operations
To decide the OSD
cursor for the
recorder.
(3)
(WIDE)
To zoom out.
P.49
(10)
(Highlight)
To highlight part of
the image displayed.
*2
(4)
BRIGHT
NESS
(Bright-
ness
adjust)
(Bright)
To brighten the
camera image.
P.53
(11)
(Mask)
To mask an area of
the output image. *2
(5)
(Dark)
To darken the
camera image.
P.53
(12)
(Scroll)
To enlarge the image
currently displayed
and move up, down,
left, and right. *2
(6)
SD mode/
highlight/
mask/
scroll
operations
(Direction)
To move forward/
backward through the
images saved in SD
mode.
Highlight mode: To
move highlighted area.
Mask mode: To move
masked area.
Scroll mode: To scroll
displayed image.
PinP mode: To move
the small screen.
Recorder mode: To
move the cursor in
the OSD menu of the
recorder.
(13)
(SD mode)
To switch the output
image to SD mode.
P.54
(14)
PC
To switch the output
image to the image
input to RGB IN.
P.54
(15)
(Capture)
To save the image
on the SD card.
P.37
(16)
(Recorder)
To operate an
optional desktop
recorder. *3
(7)
AF
(Auto
Focus)
To automatically
focus the camera.
P.50
(17)
PinP
(Picture in Picture)
To display a still image
as a small picture
while displaying a
camera image.
(18)
Back
To return the output
image to camera
image.
N o t e
*1 This function can only be used in SD mode.
*2 This function can only be used in camera mode/SD mode.
(Cannot be used in conjunction with other functions.)
*3 Cannot be used when the desktop recorder is not connected.
