12
Art. 732H
N.O. a porta chiusa
CP
TA/TE
SE
TA/TE
B2
B1
EXT+
EXT-
VLED
X
M
PA
CA
M
S+
S-
+12V
-L
SR
F2
F1
M
Functions of the video door entry unit
“Door Open” indicator.
This function shows you a warning icon at the top right corner of the display telling you that a door or gate has
remained open; this application is useful, for example, to signal any unwanted entry into the dwelling.
To enable this function, you must connect a sensor with N.O. contacts to terminals "PA" and "M" of the panel
in the Due Fili (Two-Wire) system.
N.B. When the door is closed, the sensor must be in the N.O. state.
Example installation:

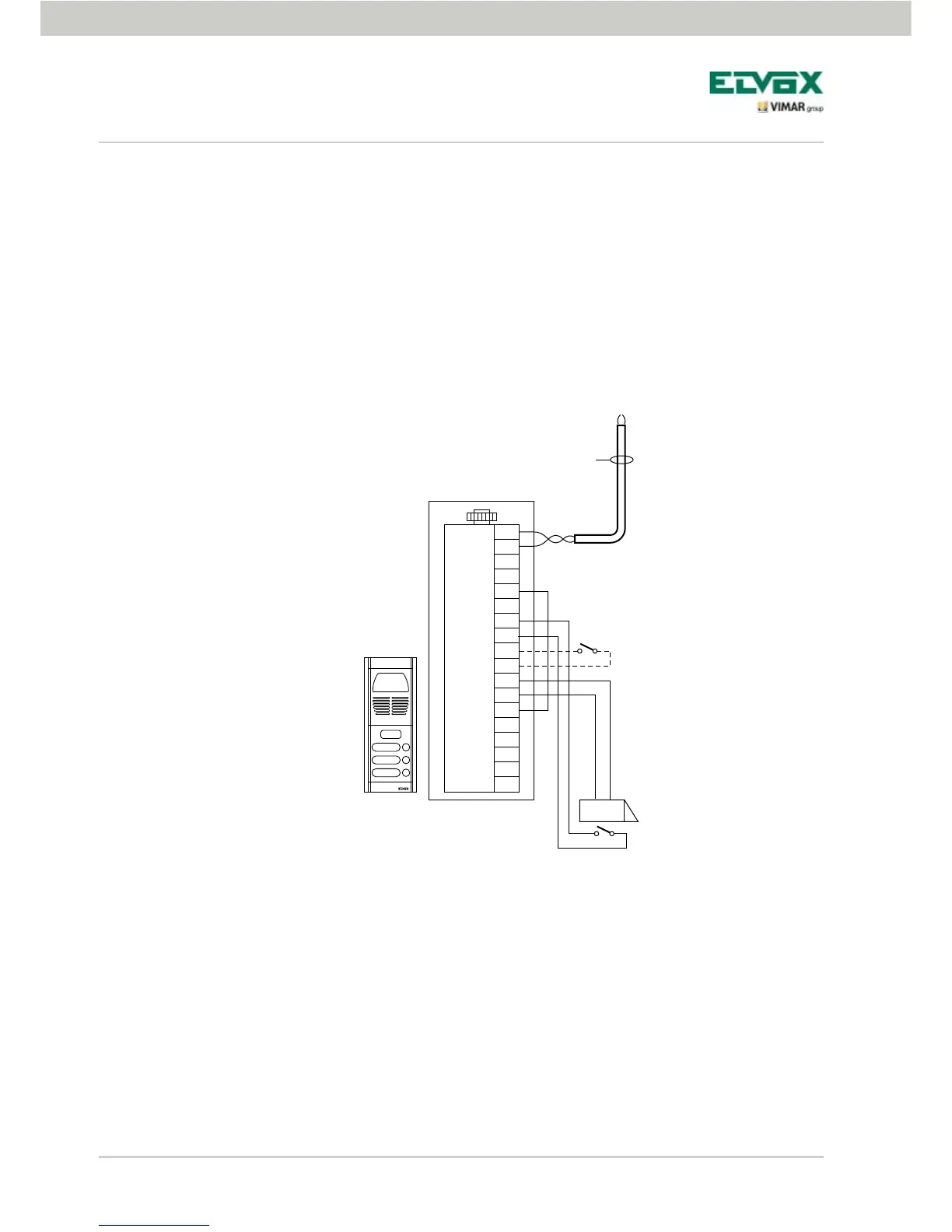

Figure 8 - Connection of the “door open” signal.
TE - External video panel
CP - Lock open button
SE - Electric lock 12 VDC
