Confi guration of the video door entry unit
Landing calls, audio/video.
If there is a speech unit on the landing with the audio/video function (art. 20577/19577/14577 with
20560/19560/14560 or 20565/19565/14565), the video door entry unit must be configured for being able to
receive the audio communication from the call button 20577/19577/14577 and activation of the video camera
from the landing.
To activate the video camera on the landing it is necessary to install the audio/video interface for video
cameras art. 69AM.
To associate the landing call button with the video door entry unit carry out the following procedure:
1. Code the landing call button (see the instructions sheet of art. 20577, 19577 or 14577)
2. Associate the video door entry unit/audio door entry unit with the landing call button 20577/19577/14577 using
the PC and the USB interface 692I/U with “EVCom” software (see the chapter called “CONFIGURATION
OF THE OPTIONAL FUNCTIONS OF THE VIDEO DOOR ENTRY UNIT” – Associating landing calls) in this
manual.
N.B.: To associate the video/audio door entry unit with the landing call of the audio/video type it is necessary to
keep the call type selection jumper (set on the removable terminal side of 20577/19577/14577) in position “V”.
IMPORTANT: The video/audio door entry unit can be associated with up to a maximum of 4 different
landing call buttons; the identification code of the call button belongs to the same ID class as the monitors
(numerical code from 1 to 200).
The local lock activation time (the setting is equal to 1 s) can be modified only with the PC and the USB inter-
face 692I/U and the “EVCom” software (selection range from 0 to 250 s).
Vice versa, the response time (30 s), conversation time (300 s) and self-start time (30 s) are fixed and are not
modifiable.
Examples of different types of landing call:

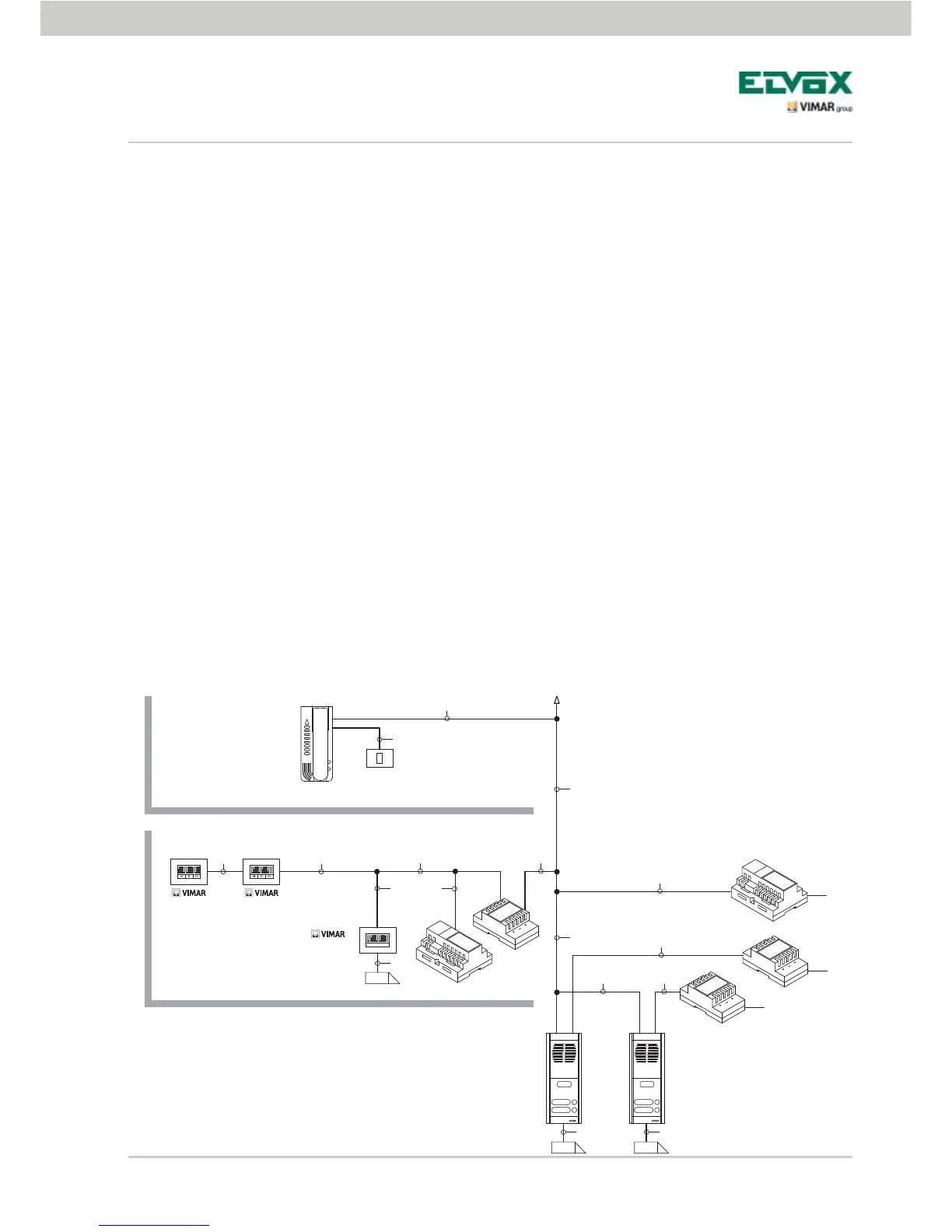

Figure 23 - Landing calls, audio only
