Elvox 5721 User Manual

26
SE
Appartamento 1
TA
AS
AS
AL
AL
IF
SP
K
CP
TC
CE
VV
CV
SE
TA
SE
Appartamento 2
~
AS
~
~
~
20565/19565/14565
2
2
2
2
2
2
2
2
2
2 2
2
2
2
2
2
20557
19557
14557
20577
19577
14577
AL - Power supply Art. 6922
AS - Additional power supply Art. 6582
CE - Elvox audio door entry unit Art. 6209
SP - Separator Art. 692S
TA - Elvox audio external panel series 1300
IF - Audio/video interface for video cameras Art. 69AM
CP - Landing call button Art. 20577/19577/14577
K - Landing call button
CV - Audio door entry unit Art. 20557/19557/14557
SE - Electric lock 12 Vdc
TC - Video camera Art. 20560-19560-14560/20565-19565-14565
VV - Video door entry unit 5721

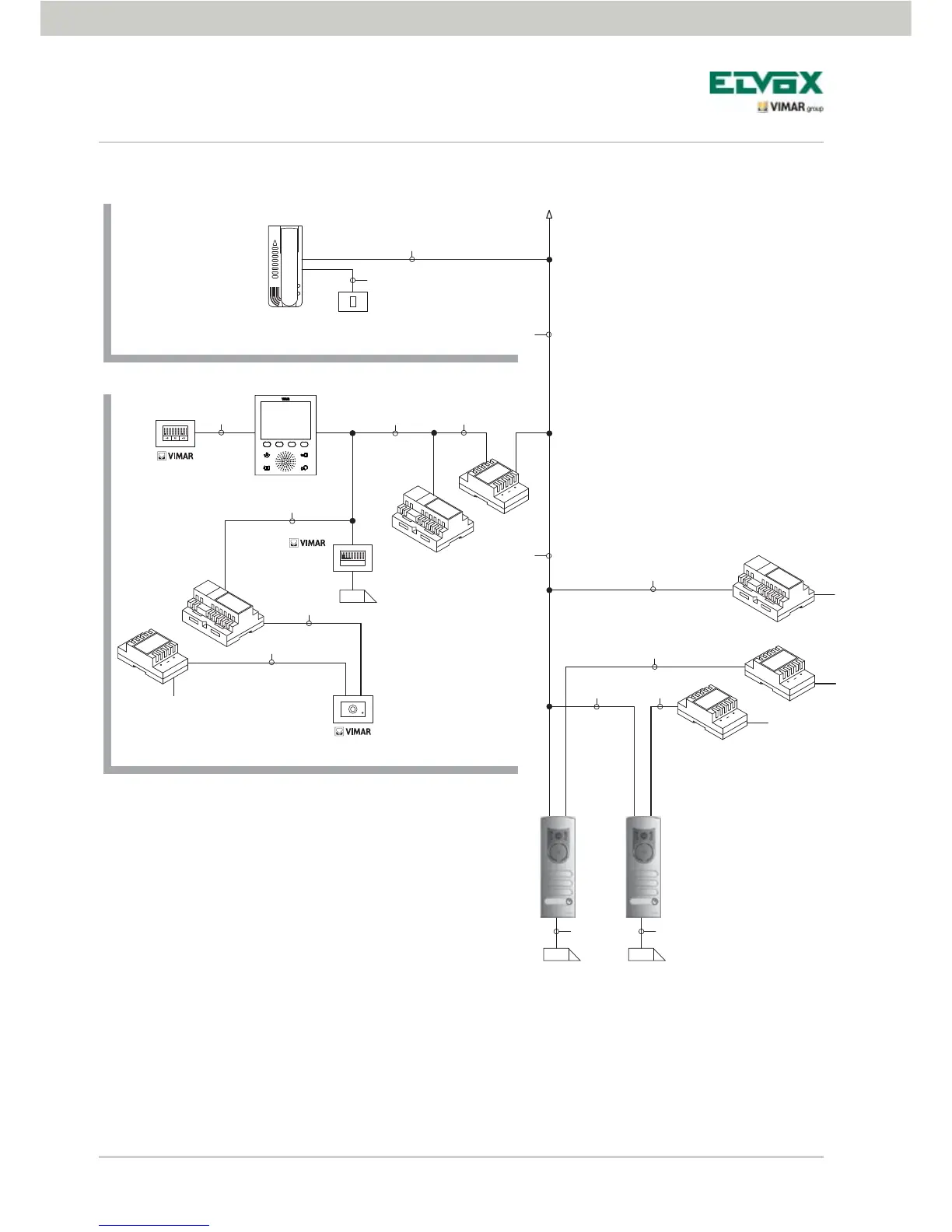

Figure 24 - Landing calls, audio/video
