21
Appartamento 1
Appartamento 2
20557
19557
14557
20557
19557
14557
TE
AS
AL
AL
SP
DV
DV
K
K
VV
CV CV
SE
2
2
2
2 2
2
2
2
2
2
2
2
2
2
2
VV
Installation topology

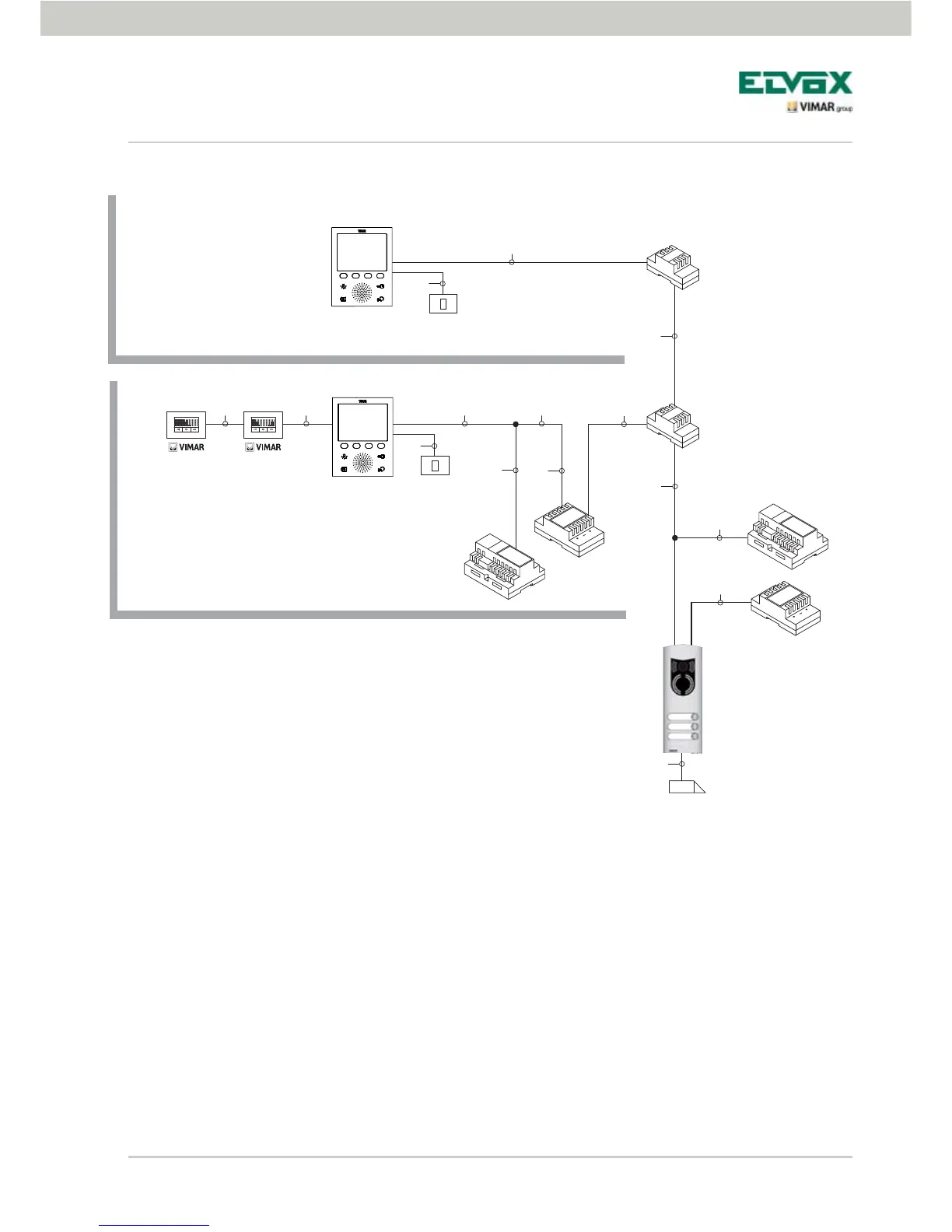

Figure 20 - Multi-family video door entry system
In the above examples, there is a single main power supply (AL) in the systems that use the single speech
unit (TE). If it is necessary to build a network of intercommunicating audio/video door entry units isolated from
the main system or if there are several external sources of audio-video signals (speech units with video cam-
era and voice unit) or if you want to create separated communication sectors or if there are systems already
installed in a building complex, then further supplementary modules will be needed such as:
• concentrators (CC);
• additional power supplies (AL1 and AS);
• separators (SP).
AL - Power supply Art. 6922
AS - Additional power supply Art. 6582 for LED power supply
DV - Video distributor Art. 692D
SP - Separator Art. 692S
TE - External video panel
SE - Electric lock 12 Vdc
K - Landing call button
CV - Audio door entry unit Art. 20557/19557/14557
VV - Video door entry unit 5721
