EMC VNX Series

EMC
®
VNX
™
Procedure Generator
EMC CONFIDENTIAL version: 4.5
31 of 51
Table 4 Blade Enclosure ID and Blade mapping
Enclosure ID Blade within the enclosure
0 2 and 3
1 4 and 5
2 6 and 7
3 8 and 9
27. [ ] When the system prompts for the NAS Enclosure ID, enter the number of the replacement BE.
Table 4 lists the NAS Enclosure ID and the Blades associated with each enclosure.
28. [ ] Continue pressing
Enter to accept the default values until the system prompts:
Continue (y or n) [yes]?
29. [ ] Enter y and press Enter.
30. [ ] Press
0 and press Enter to return to the Diagnostic Menu, select Reset Controller, and press
Enter.
31. [ ] Close your HyperTerminal or PuTTY session on the Blade and disconnect the service laptop from
the Blade management module.
Task 9: Collect System Information
In this task you set up the work environment on the primary Control Station and save a record of the current
Blade port to Storage Processor (SP) port connections. It is important that these records are saved in case
they need to be reapplied.
In this task you will set up the work environment on the Control Station and collect system information and
save SP logs
Set up the Work Environment on the Control Station
1. [ ] Connect the null modem cable from the COM 1 port of your service laptop to the serial port on the
rear of Control Station CS 0 (Figure 19).
CNS-000918
Serial port

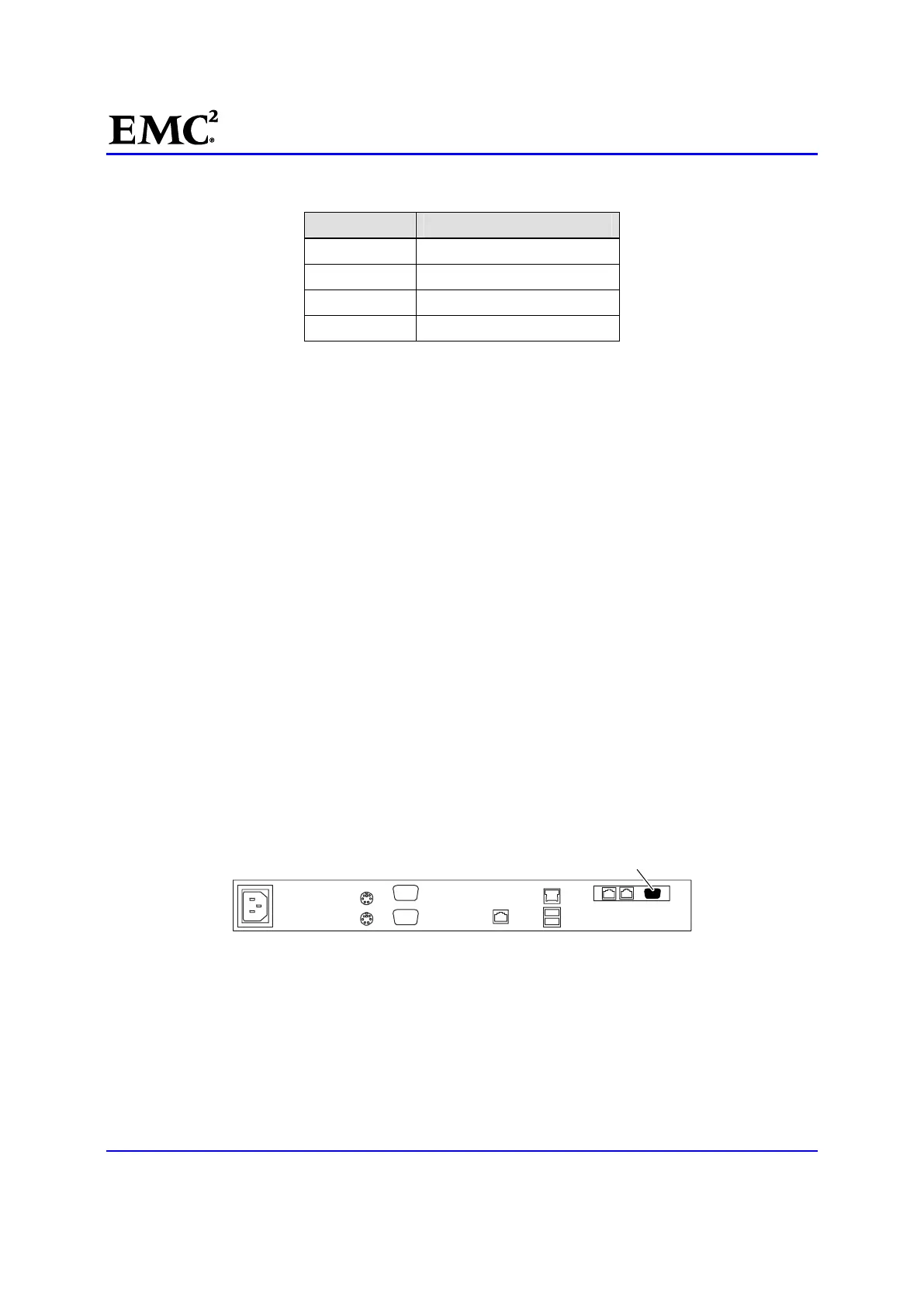

Figure 19 Control station (rear view)
2. [ ] Open the HyperTerminal session using the following settings:
Bits per second: 19200
Data bits: 8
