DPSI RV Mini Family Operating Instructions Version 1.0
Page 10 of 54

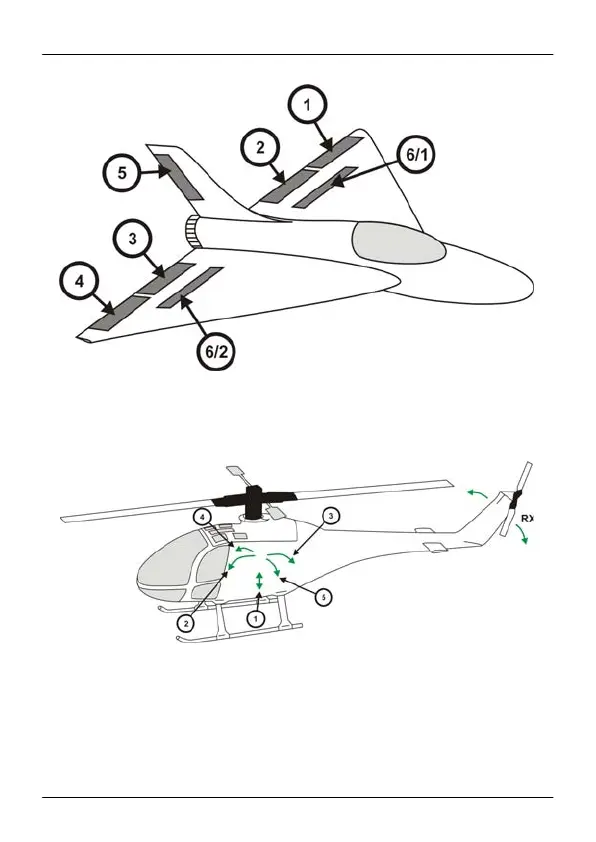

A jet with flaps and spoilers. The turbine-ECU is directly connected to the receiver,
as well as landing gear doors or other electronically systems.
A helicopter with 4-point-control of swash plate (2 roll- und 2 pitch-servos). 1 = throttle. The
gyro (tail rotor) is supplied directly by the receiver (5.2V) or via channel 6/1 of the DPSI (5.9V).
