DPSI RV Mini Family Operating Instructions Version 1.0
Page 23 of 54
9.4. Connecting the Switch Actuator
Mechanical switches risk malfunctions. There are vibrations at a
fuselage's side wall especially with large models. In order to avoid any
mechanically influence in DPSI RV systems electronically switches
with self-holding circuitry are utilized.
The electronically switches are only controlled by a pulse from the
external switch actuator. The receiving set therefore is turned on or off
by means of a pin or magnet (Magic version). The corresponding
switch actuator just delivers the on/off signal.

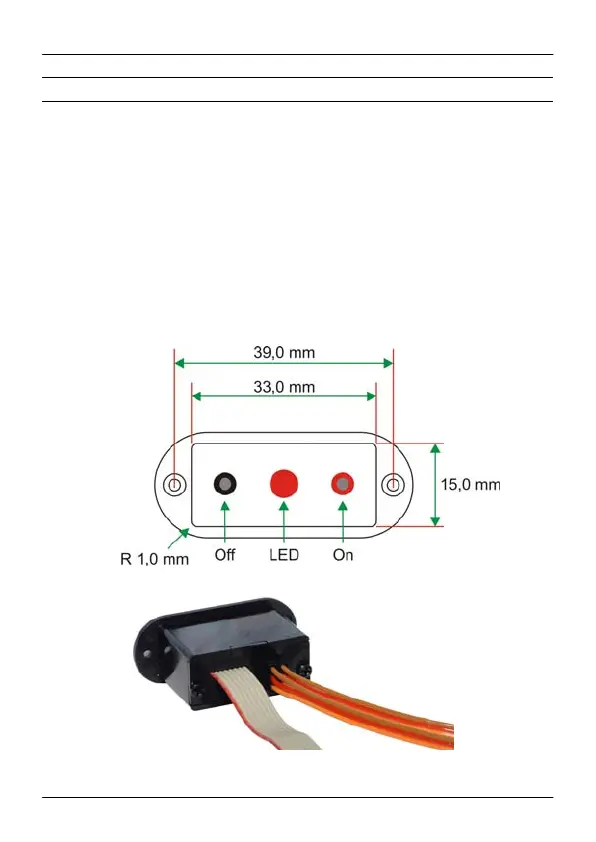

Dimensions of the switch transmitters:
Rear side of the switch transmitter with connected battery controllers (optionally)
