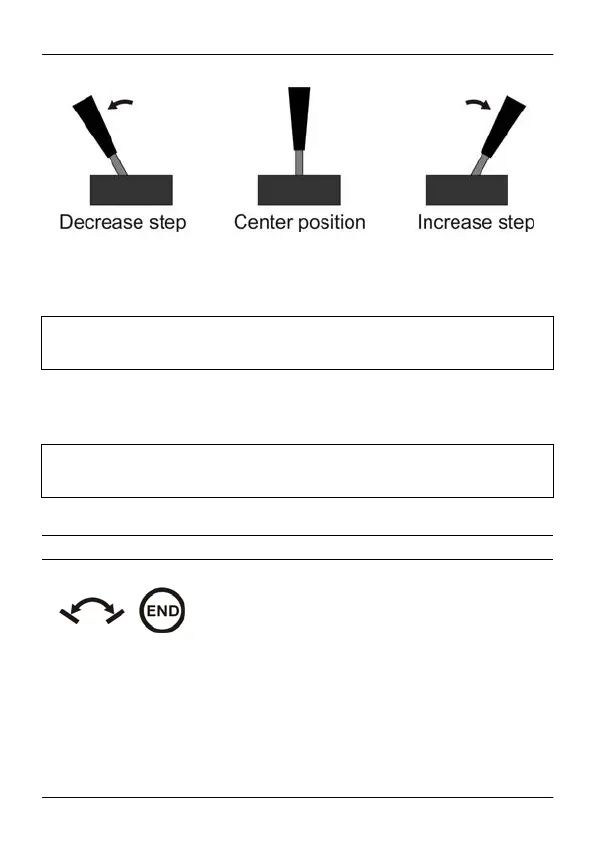

Holding the stick in its end position the steps increase or decrease
automatically after 2.5 seconds. This serves for quicker settings.
Hint:
Due to the high resolution it is possible that the change in servo positions is only
visible after several single steps.
As soon as the slave servo reaches its final center position remove the
magnet from the red dot. Programming of servo center is finished.
Hint:
If the servo center position is newly programmed, the end-positions should be re-
programmed as well in order to gain linear curves.
10.4. Setting End-Limits
Programming of end limits starts identically to
programming servo center. Here, the stick (or
switch actuator) is put into its maximum end
position within 5 seconds after the servo
makes its short move. After these 5 seconds the servo moves again
and both servos remain in their maximum-position. The stick is now
moved to its center position – servo positions do not change!
Here too, deflection of the slave servo is accomplished by moving the
stick out of its center position in order to increase or decrease the
steps.
