DPSI RV Mini Family Operating Instructions Version 1.0
Page 41 of 54
Hint:
Whenever programming is activated the green LED blinks for controlling
purposes in the DPSI RV Mini Magic at a rate of 0.5Hz (1s on, 1s off). A fast
blinking of this green LED indicates a failure (=> missing receiver signal).

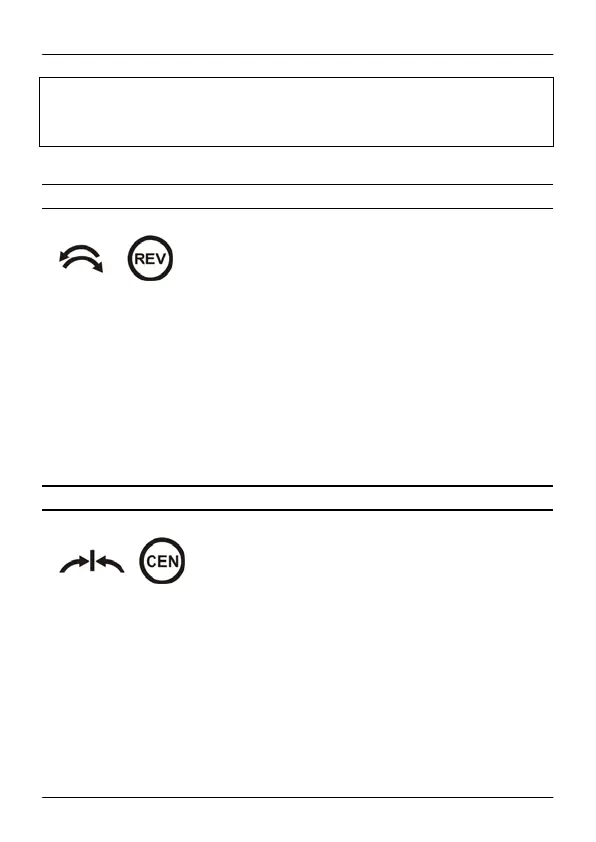

10.2. Changing Servo Direction
If the direction of a servo is to be changed, all
other settings remain! For changing the direction
of the servo, the magnet is to be put close to the
corresponding position (red dot in the "magnetic
programming panel" field) within the first 10 seconds after power on.
Distance of the magnet may be up to 8mm. It is easiest to set the
magnet onto the housings upper surface.
2.5 seconds after placing the magnet the slave servo makes a short
move back and forth (approx. 10% deflection). If the magnet is then
removed within 5 seconds, the direction of the servo changes and is
permanently stored.
10.3. Setting Servo Center
Programming also starts by positioning the
magnet close to the red dot. The servo turns
shortly (just as when changing direction). Do
not remove the magnet now but keep it on the
current position (on the red dot). The transmitter's stick or switch
actuator must not be moved anymore, i.e. it must remain on its center
position. After another 5 seconds the servo turns again. Now
programming of the servo's center position is activated.
The master servo now remains in its current center position and does
not move even if the transmitter's stick is moved. Each move of the
stick out of its center position increases or decreases the servo
position (servo center) of the slave servo for one step.
