DPSI RV Mini Family Operating Instructions Version 1.0
Page 45 of 54

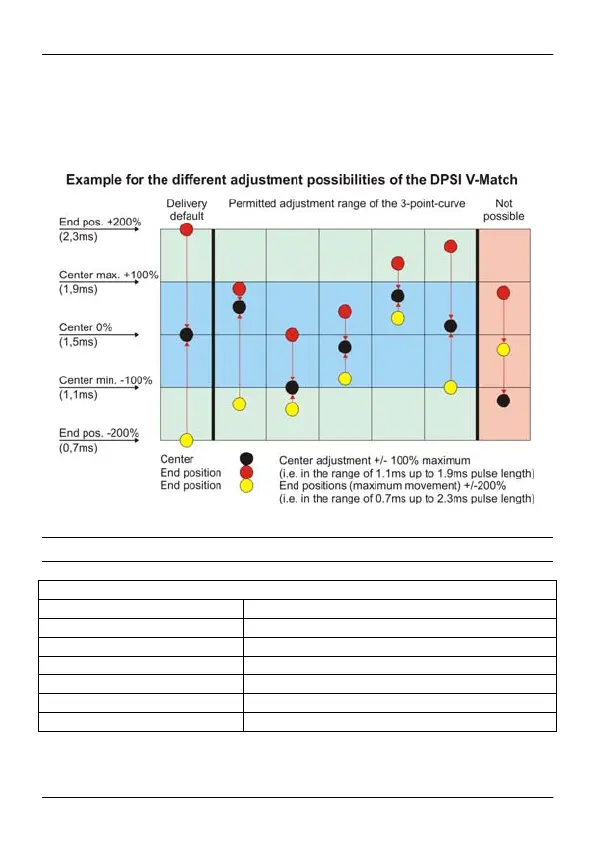

A range check takes place at every programming attempt. It is
therefore not possible to position the servo center position outside of
the maximum value. This inhibits malfunctions (e.g. V-curve of servos).
10.10. Technical Data of Servo-Matching
Servo Signal Level Input:
Low-Level 0V ... 0.8V
High-Level 2.0V ... 8.4V
Servo Signal Level Output approx. 5.0V
Permissible Center Position +/-100% (1.10ms .... 1.90ms)
Permissible End-Limits* +/-200% (0.70ms .... 2.30ms)
Permissible Signal Period min. 6.9ms, max. 34.868ms
Resolution (steps) 3200
