9.7. Soldering Battery Sockets
Delivered Multiplex high current sockets are marked + and – on their
soldering side. Observing this marking is mandatory! Dismantle the
cable about 5mm, and then tin it. Before soldering, push the delivered
shrink hose over the corresponding cable. Solder the cable to all 3 pins
on one side of the socket; it must contact all 3 pins from the inside (see
picture). If the cables are thin, bend the pins of the socket a little to
their common center. Use plenty of tin to assure good contact to all 3
pins. Shrink the hose using a heat gun.

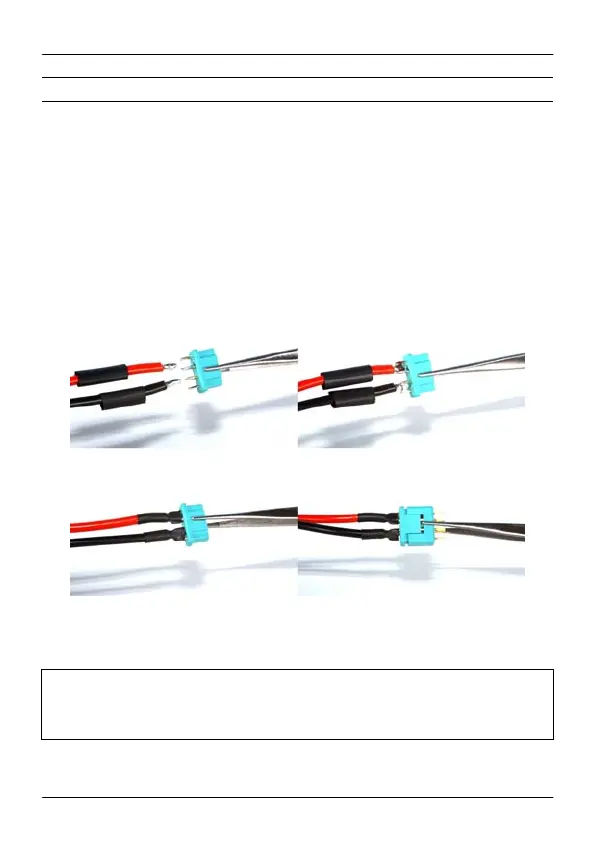

Soldering Multiplex connectors:
Hint:
DPSI RV Mini systems are not inverse polarity protected by design! Please
observe correct connection of the batteries, i.e. connect red wire to positive and
black wire to negative. Better control once too many than too little!
