7.1.6 Baseline viewer
Use the Baseline viewer to monitor the meter's flow direction and flow characteristics
including:
• Flow Velocity
• Profile Factor
• Swirl Angle
• Symmetry
• Cross-flow
• Path Turbulences
Access the Baseline viewer from the Meter|Monitor (Detailed) dialog while connected to
your meter.
Note
You must have a valid Continuous Flow Analysis key to enable this feature. See for instructions about
this topic and to configure the baseline parameters for your meter using the Tools|Set Baseline
Wizard menu.

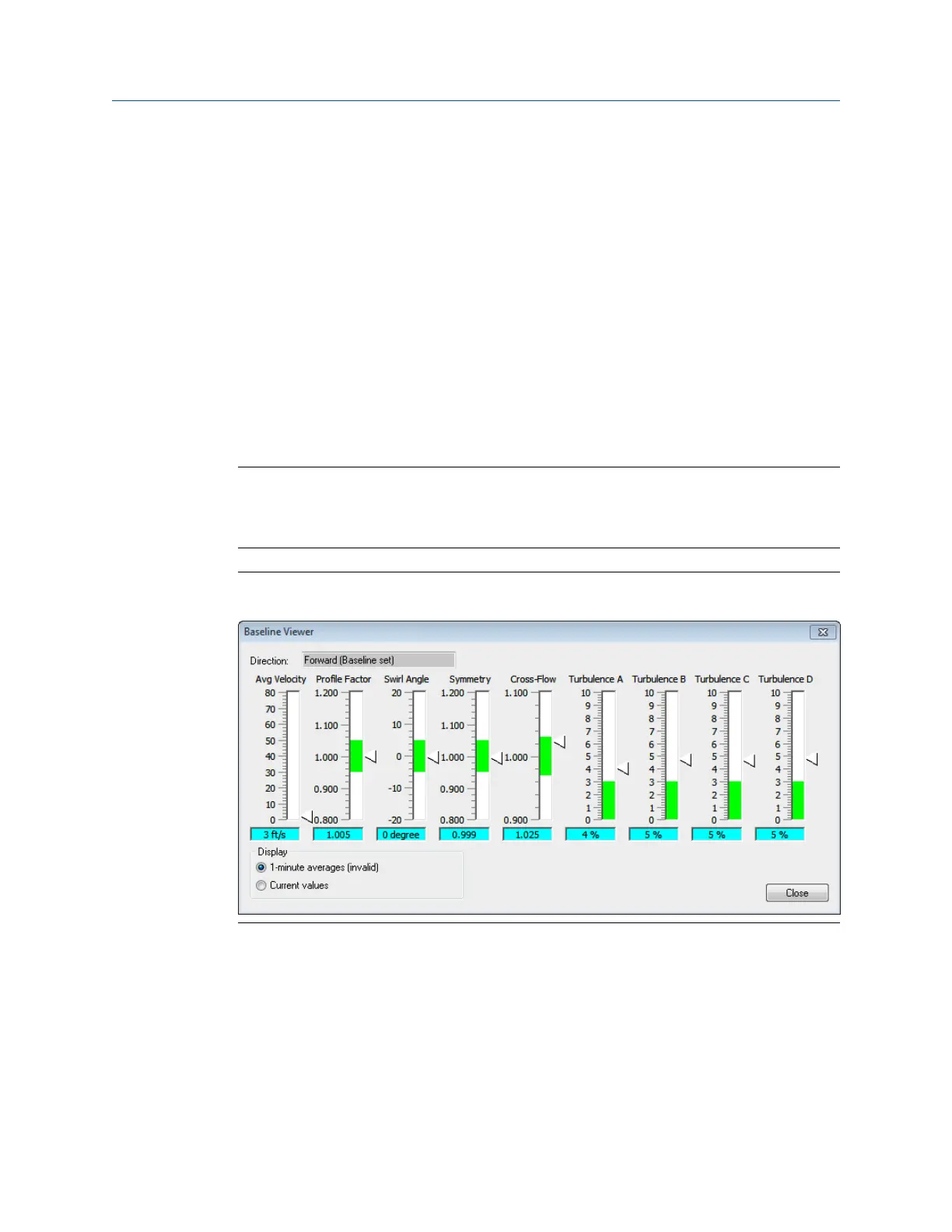

Baseline viewerFigure 7-8:
The Baseline viewer indicates the current flow direction, forward or reverse, and gauges
display the flow characteristics of the meter. The Baseline viewer dialog displays a
horizontal "green zone" that indicates the expected value range. As an example, Figure 7-8
depicts out-of-range values for turbulence on all four chords.
Read the baselines viewer gauge values
Table 7-2 describes the values for each gauge and how the green zones are defined.
Commands
120 3410 Series Gas Ultrasonic Flow meters
