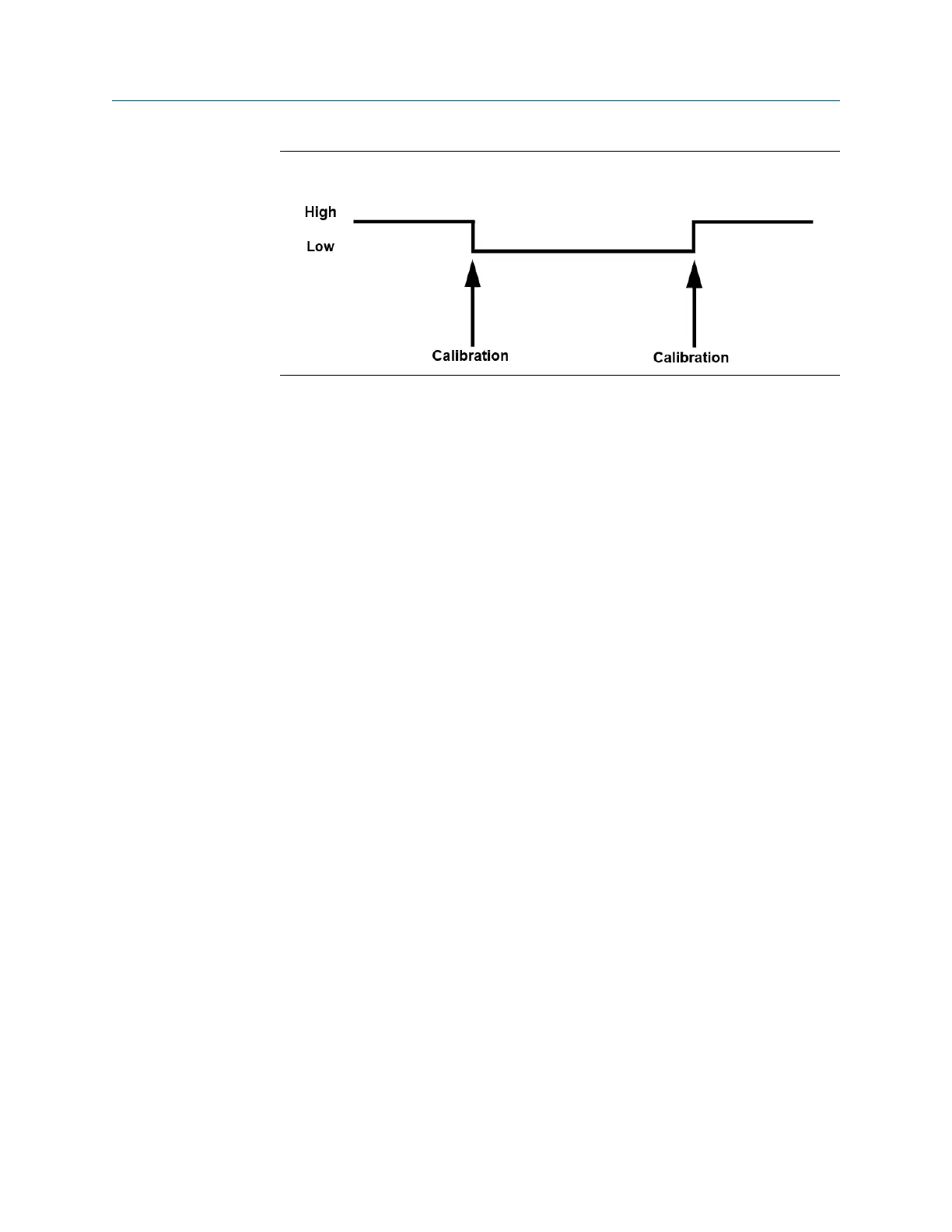

Gating configuration parameter State gated, active lowFigure 5-9:
A Microsoft Excel
®
file is generated and the calibration log report can be saved or
appended to an existing file.
5.3.2 Configure Frequency/Digital output sources
The meter has three user-configurable outputs that can be configured for either a
Frequency output or Digital output (FODO).
• FODO1 (eight possible parameter configurations) [Type 2] [Type 4]
• FODO2 (eight possible parameter configurations) [Type 2] [Type 4]
• FODO3 (eight possible parameter configurations) [Type 2] [Type 4]
• FODO4 (eight possible parameter configurations) [Type 4]
• FODO5 (eight possible parameter configurations) [Type 4]
• FODO6 (eight possible parameter configurations) [Type 4]
- (DI1Mode must be set to Frequency/Digital Output 6 to enable FODO6)
Frequency or Digital Outputs (FODO1, FODO6) source options ~ Group 1
• FO1A, DO1A, FO1B, DO1B, FO2A, DO2A, FO2B, DO2B
• Frequency output 1A is the A Phase of Frequency output 1 content (Uncorrected
volume floe rate, Corrected volume flow rate, Average flow velocity, Average speed
of sound, Energy flow rate, Mass flow rate)
• Frequency output 1B is the B Phase of Frequency output 1
• Frequency output 2A is based on frequency content (Actual - Uncorrected Flow
Rate)
• Frequency output 2B is based on frequency content and Frequency 2B Phase
• Digital output 1A is based on Digital output1A content (Frequency Output 1Validity
and Flow Direction)
• Digital output 1B is based on Digital output1B content (Frequency Output 1 Validity
and Flow Direction)
• Digital output 2A is based on Digital output 2A content (Frequency Output 2 Validity
and Flow Direction)
• Digital output 2B is based on Digital output 2B content (Frequency Output 2 Validity
and Flow Direction)
Configurations
