5.6 Outputs test mode
The Daniel 3410 Gas Ultrasonic Flow Meters provides a mode of operation for testing the
frequency, current (analog) and digital output signals. Entering, configuring, and exiting
this mode is accomplished by setting data points using the Daniel MeterLink Tools|
Outputs Test.

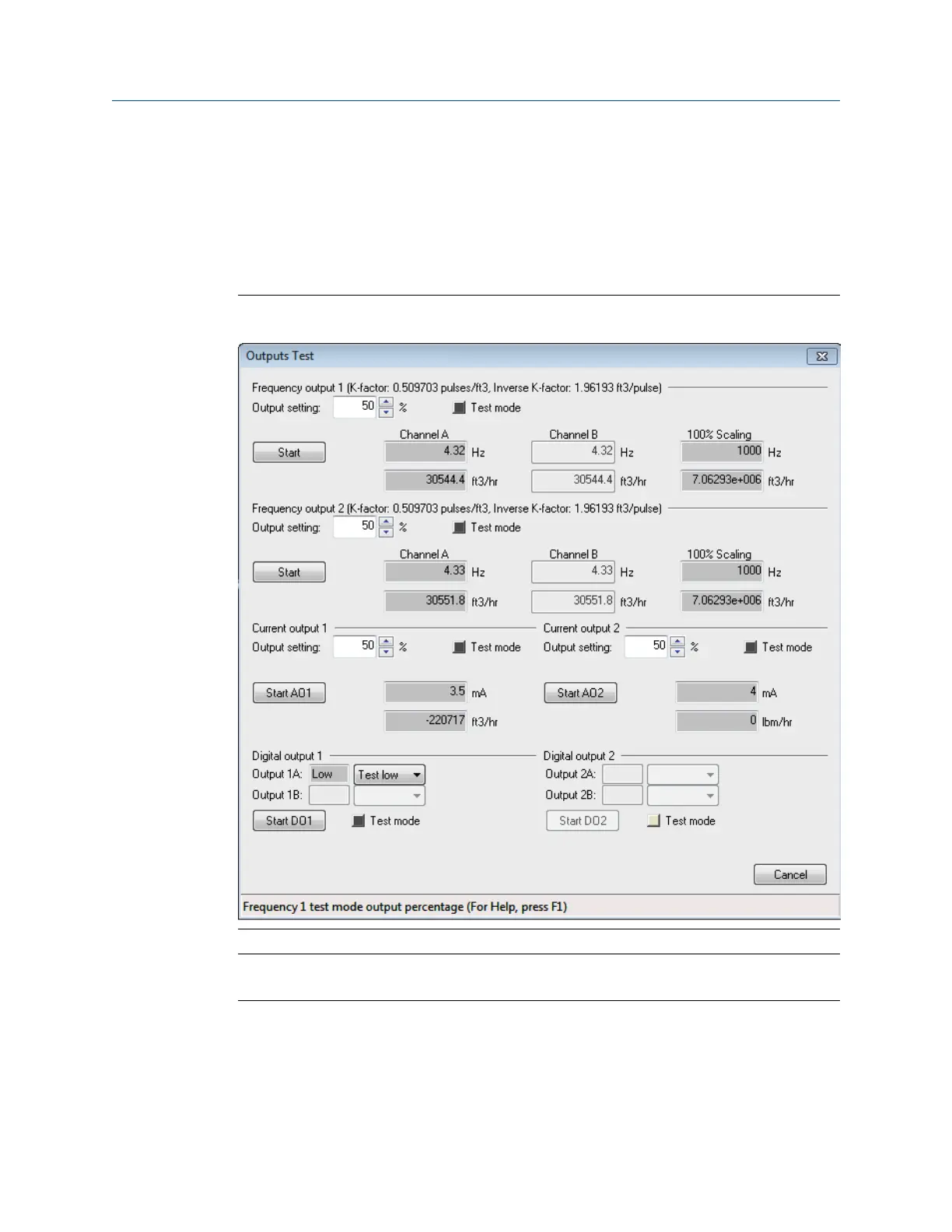

Meter Outputs Test pageFigure 5-12:
Note
The AO2 is only available with CPU module, part number 1-360-03-010.
The Outputs Test dialog box allows you to monitor the live values of all the frequency,
current (analog) and digital outputs. Additionally the outputs can be set into a Test mode
to force the outputs to a specific user defined value. This dialog box is only available while
connected to a meter.
