Emerson Daniel Ultrasonic 3410 Series

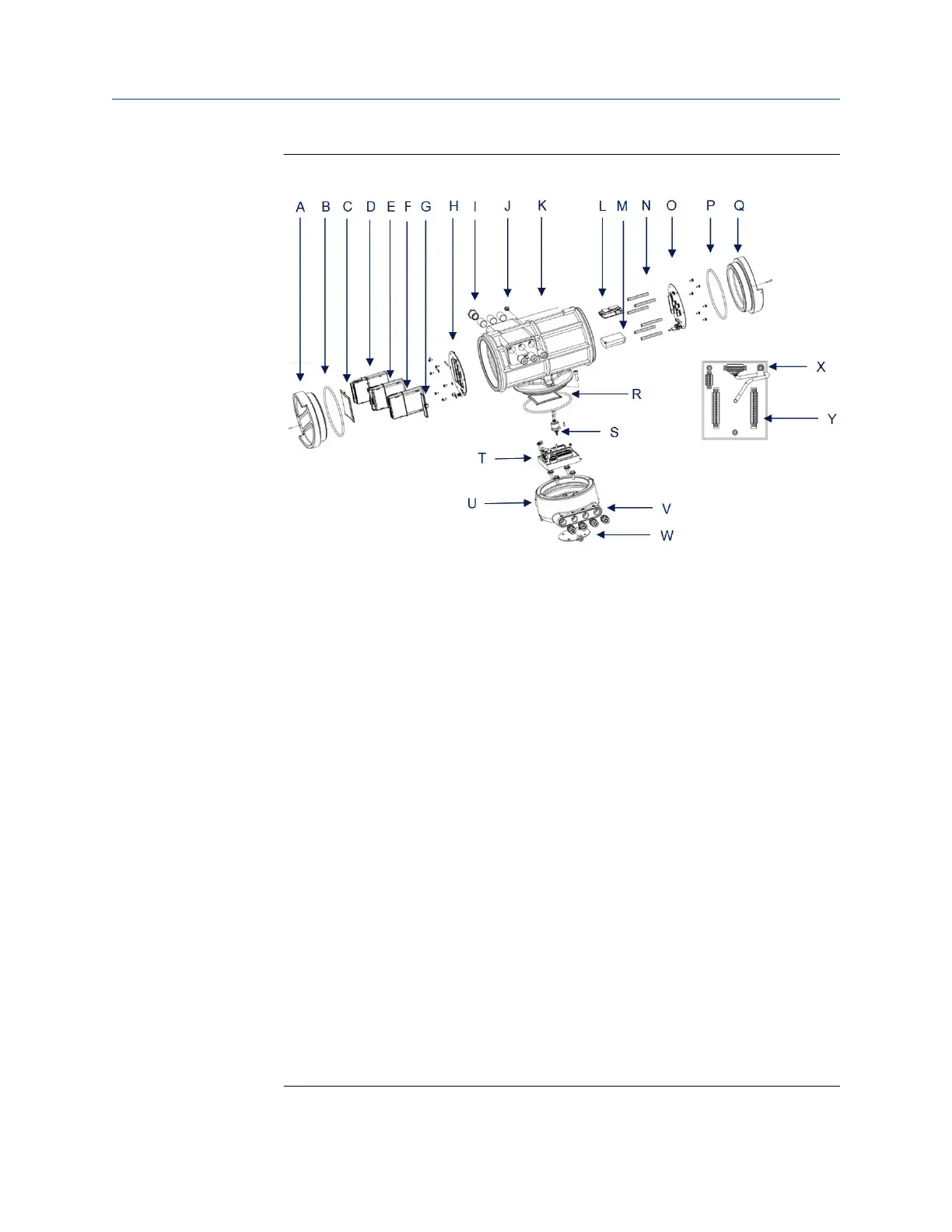

Figure 3-4: 3410 Retrofit electronics assembly
A. End cap and security screw
B. O-ring
C. Desiccant packet
D. CPU Module
E. Optional RS-232 I/O Module
F. Optional RS-485 I/O Module
G. Blanking cover
H. Guide plate
I. M20 reducer
J. Ground lug - external
K. Transmitter electronics enclosure
L. Power supply
M. I.S. Barrier board
N. Standoffs
O. Backplane board
P. O-ring
Q. End cap and security screw
R. O-ring
S. Acquisition cable and roll pin
T. Acquisition Module assembly
U. Base enclosure
V. Cable glands
W. Gasket, base enclosure
X. Acquisition cable clamp
Y. Acquisition Module
