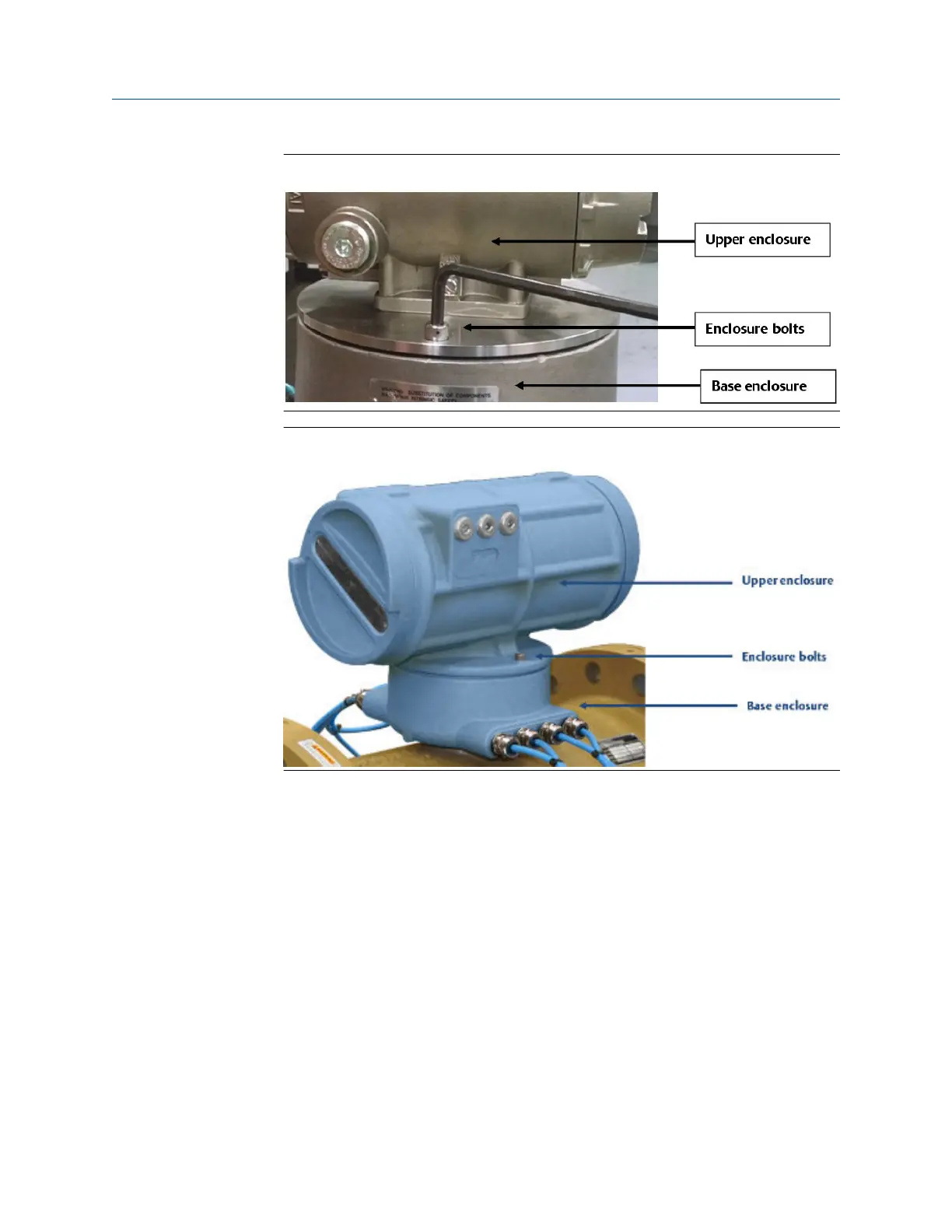

Figure 5-13: Bolt the upper enclosure to base enclosure
Figure 5-14: Bolt the upper enclosure to base enclosure
24. Remove the end cap next to the conduit entries from the upper enclosure. Figure
5-15 shows the layout of the 3410 electronics.
Upgrade kit instructions Installing the 3410 Series Electronics
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 37
