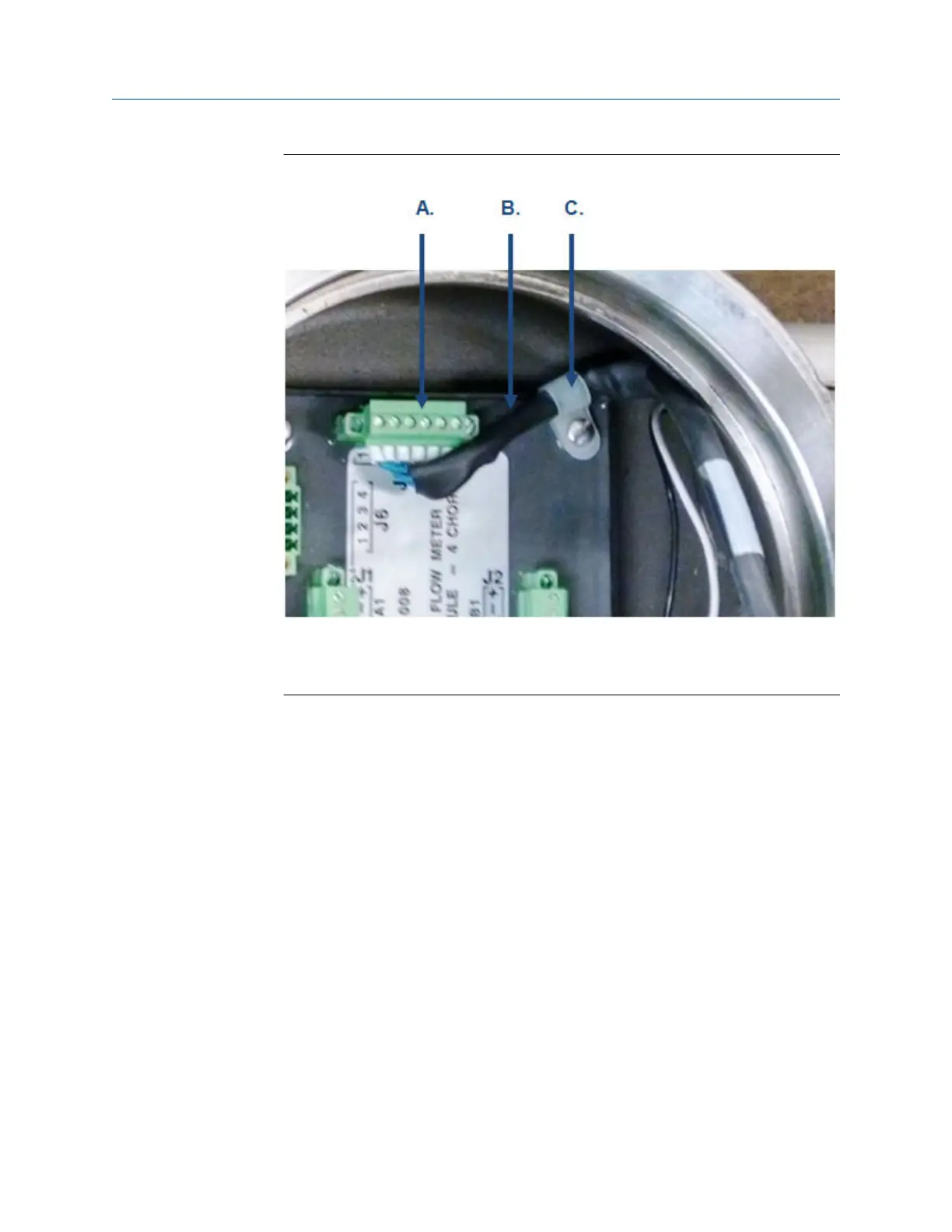

Figure 5-12: Installing the Acquisition Module cable clamp
A. Acquisition cable connector
B. Acquisition cable
C. Cable clamp and screw
20. Wrap the excess cable around the Acquisition Module and place the electronics
housing into position on the base enclosure.
21. Ensure the O-ring on the base of the upper enclosure is properly seated. Position
the upper enclosure housing so that it is in the desired orientation for reattaching
the electrical conduit.
22. Install the 3410 meter upper enclosure on the base enclosure once the transducers
are wired correctly.
23. Install the two screws with the 6 mm Allen wrench to secure the upper enclosure to
the base enclosure.
Installing the 3410 Series Electronics Upgrade kit instructions
July 2019 P/N 3-9000-784
36 3410 Series Electronics Upgrade kit instructions
