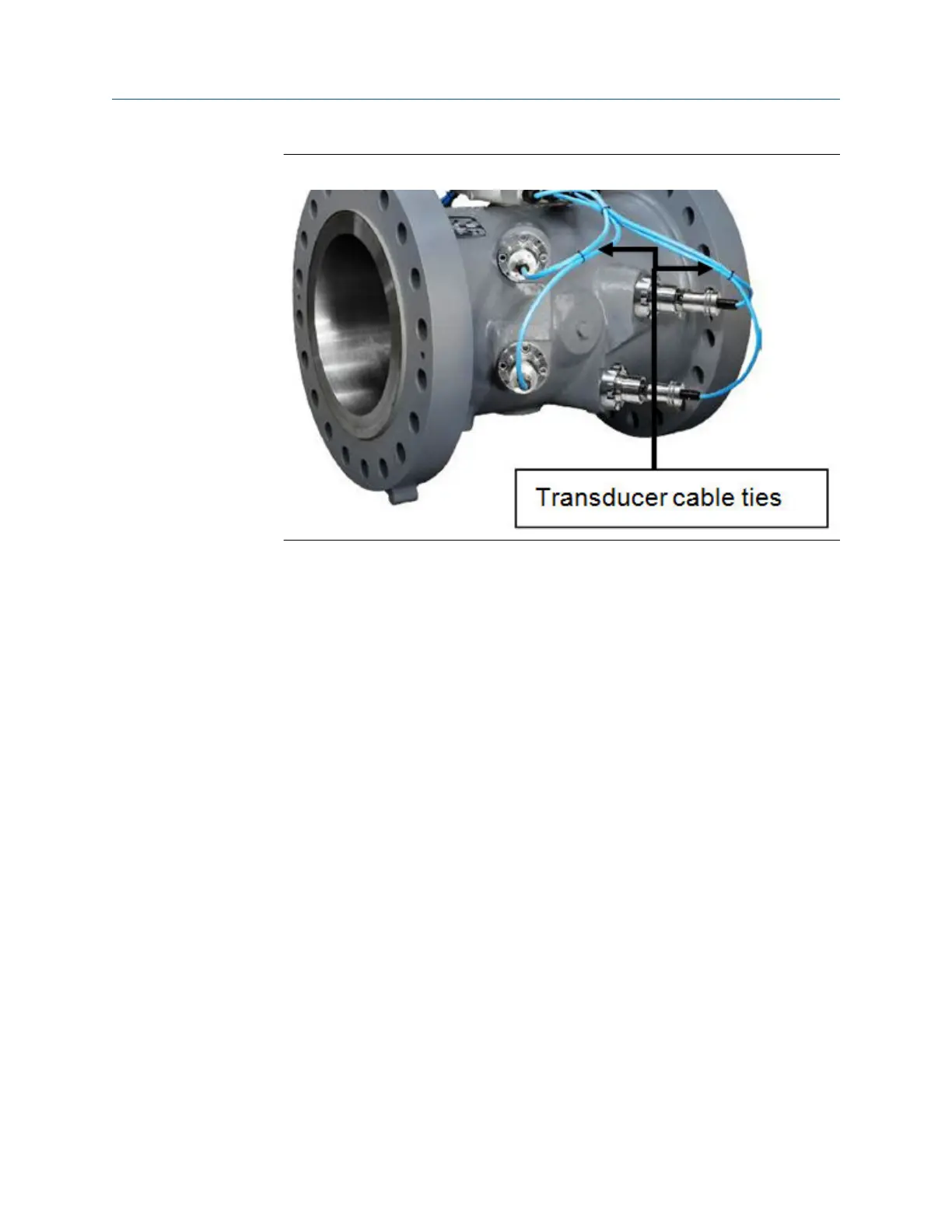

Figure 5-11: Re-oriented and secured transducer cables
18. Reconnect the acquisition cable connector to the acquisition module and secure
the cable connector by tightening the two screws.
19. Install the cable clamp on the Acquisition cable and secure it with the final
mounting screw for the Acquisition module.
Upgrade kit instructions Installing the 3410 Series Electronics
P/N 3-9000-784 July 2019
3410 Series Electronics Upgrade kit instructions 35
