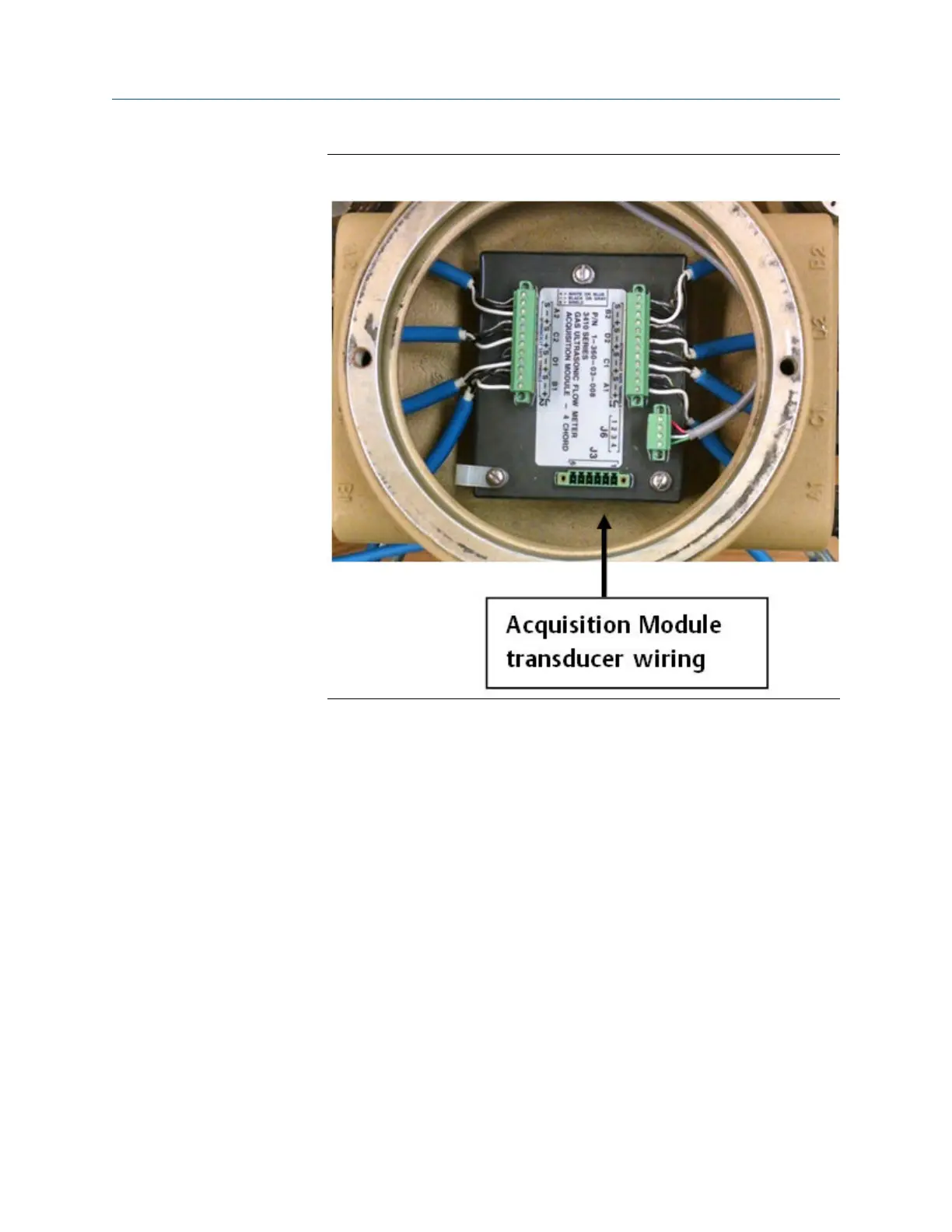

Figure 5-10: Install cable and secure wires
17. Use the cable ties to dress the transducer cables. They should be dressed in groups
of two: A1 and C1, D1 and B1, A2 and C2, D2 and B2. Install one cable tie at three
inches from the base enclosure and another about the point where the cables start
to bend and separate out to their respective port.
Installing the 3410 Series Electronics Upgrade kit instructions
July 2019 P/N 3-9000-784
34 3410 Series Electronics Upgrade kit instructions
