illustrations for each of the connectors in the electronics. Refer to the System
Wiring Drawing in Appendix D.

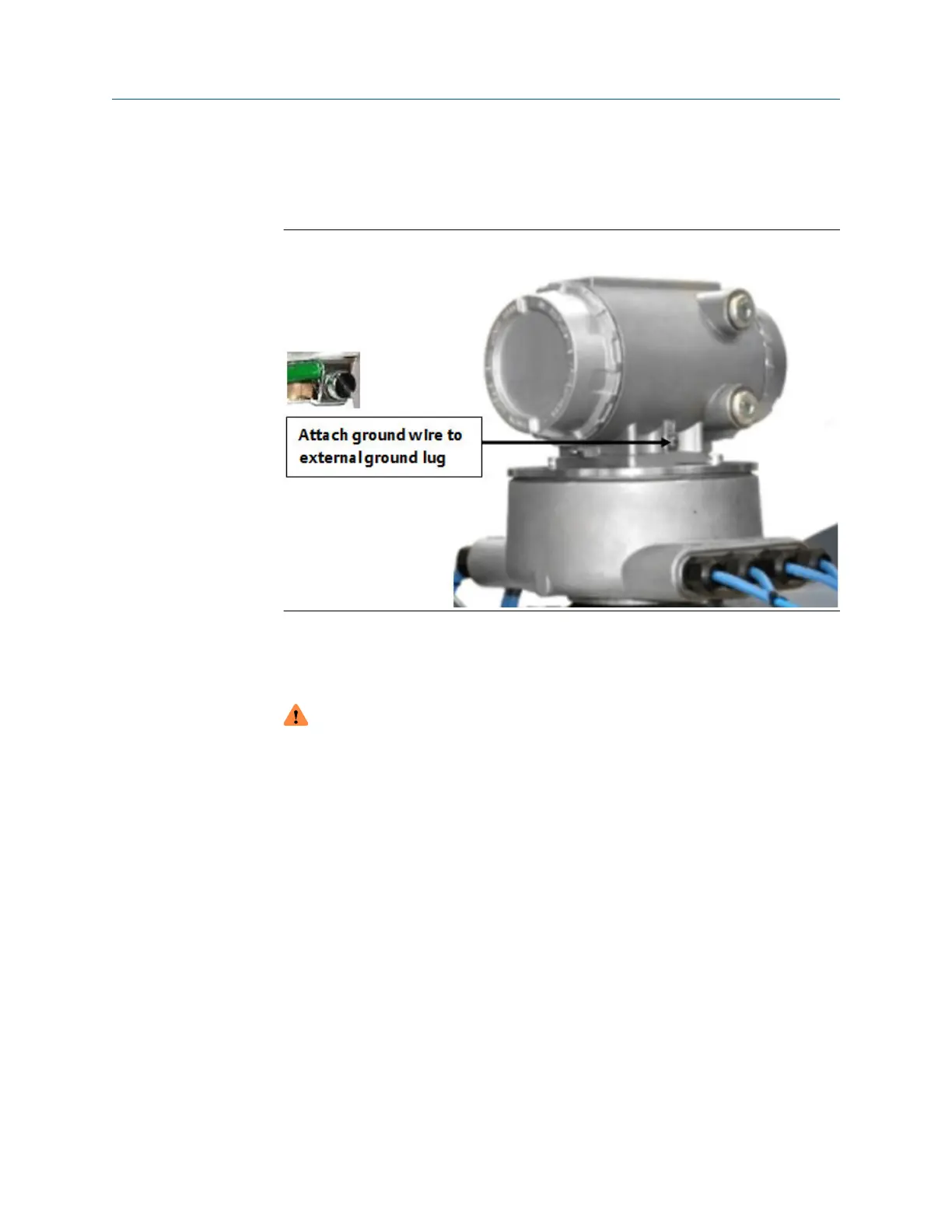

27. Install a ground wire to the ground lug on the side of the upper enclosure.
Figure 5-20: Transmitter electronics enclosure ground wire
28. Attach flex conduit to the conduit ports on the transmitter electronics enclosure.
Before applying power to the meter, ensure the atmosphere is proven safe
using an intrinsically safe gas detector.
WARNING
EXPLOSION HAZARD
Do not apply power to the meter with the end caps removed unless you are in a
non-hazardous or explosive-free environment.
Failure to comply could result in death, serious injury and possible equipment
damage.
29. Apply the sealing compound to the conduit seal fittings and allow to set in
accordance with manufacturer specifications.
30. Apply electrical power to the system and verify the field connections are working
correctly.
31. Do not install end caps until you configure the meter.
This completes the installation of the hardware associated with the 3410 Series
Electronics meter upgraderetrofit procedure.
Installing the 3410 Series Electronics Upgrade kit instructions
July 2019 P/N 3-9000-784
44 3410 Series Electronics Upgrade kit instructions
