12 Unidrive M SI-PROFIBUS User Guide
Issue Number: 3
3 Mechanical installation
3.1 General Installation
Installation of the various option modules is illustrated in the following diagrams.

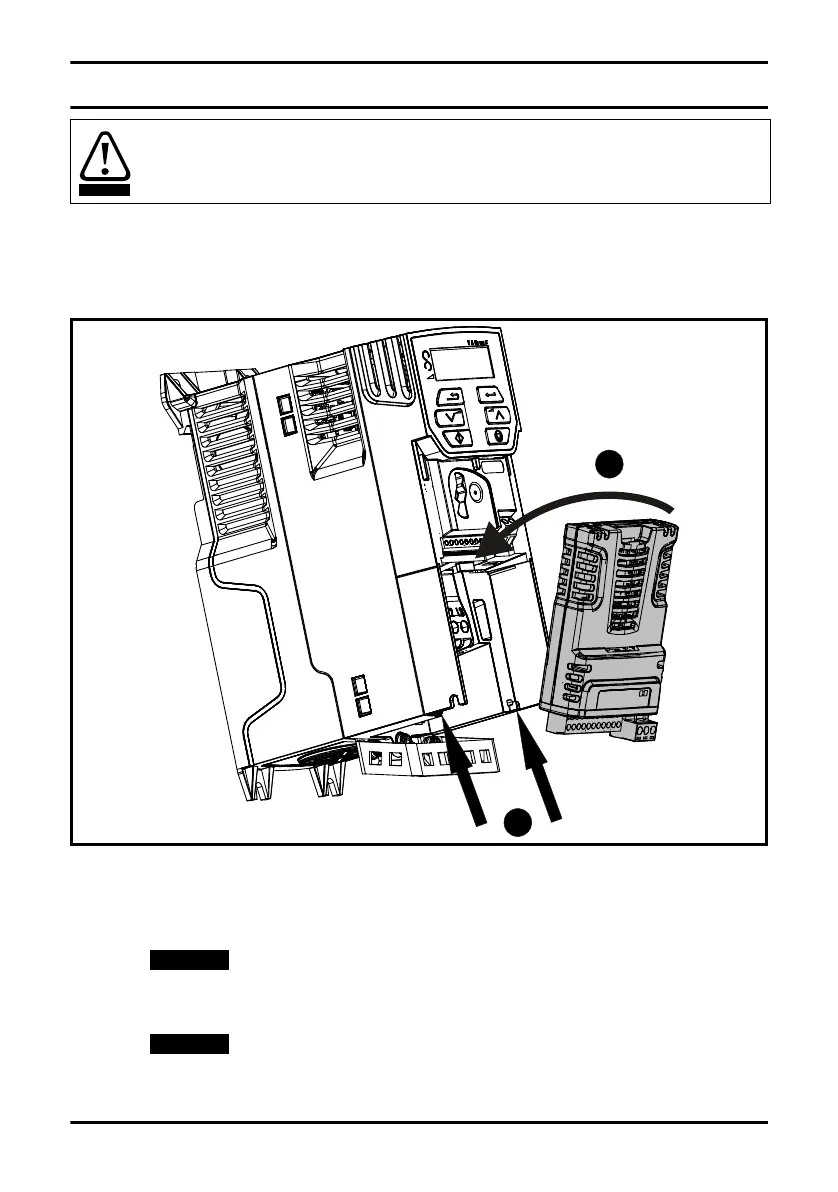

Figure 3-1 Installation of an SI option module on Unidrive M200 to M400 (sizes 2
to 4)
• With the option module tilted slightly backwards, align and locate the two holes in
the rear of the option module onto the two tabs (1) on the drive.
• Place the option module onto the drive as shown in (2) until the module clicks into
place. The terminal cover on the drive holds the option module in place, so this must
now be replaced.
The above diagram is for illustration only, the actual option module may be different to
the one shown here.
Option modules can only be installed on drives that have the option module slot
functionality.
Before installation or removal of an option module from any drive, ensure the AC supply
has been disconnected for at least 10 minutes and refer to section 1 Safety
information on page 5. If using a DC bus supply ensure this is fully discharged before
working on any drive or option module.
