Emerson SI-PROFIBUS User Manual

Unidrive M SI-PROFIBUS User Guide 9
Issue Number: 3
Safety
information
Introduction
Mechanical
installation
Electrical
installation
Getting
started
Parameters GSD Files Cyclic data
Non-cyclic
data
Control and
status words
Diagnostics
PROFIdrive
profile (V4)
Advanced
features
Legacy
features
Glossary of
terms
Index
PROFIBUS-DP can transfer data using two distinct modes. The first of these modes is
cyclic, where signals are sent in predefined blocks at regular intervals. This is the
equivalent of the hard-wired example in Figure 2-1.
The second method of transfer is called non-cyclic data, and is used for sending values
that only need to be changed occasionally or where the source or destination of the
signal changes. This is the equivalent of a temporary patch lead that is removed after
use.
2.2 About SI-PROFIBUS
SI-PROFIBUS is a fieldbus option module that can be installed to the option module
slot(s) in any of the following drives to provide PROFIBUS-DP slave connectivity:
• Unidrive M700/M800
• Unidrive M200/M300/M400 (firmware V01.03.00 or later)
It is possible to use more than one SI-PROFIBUS or a combination of SI-PROFIBUS
and other option modules to add additional functionality such as extended I/O, gateway
functionality, or additional PLC features.

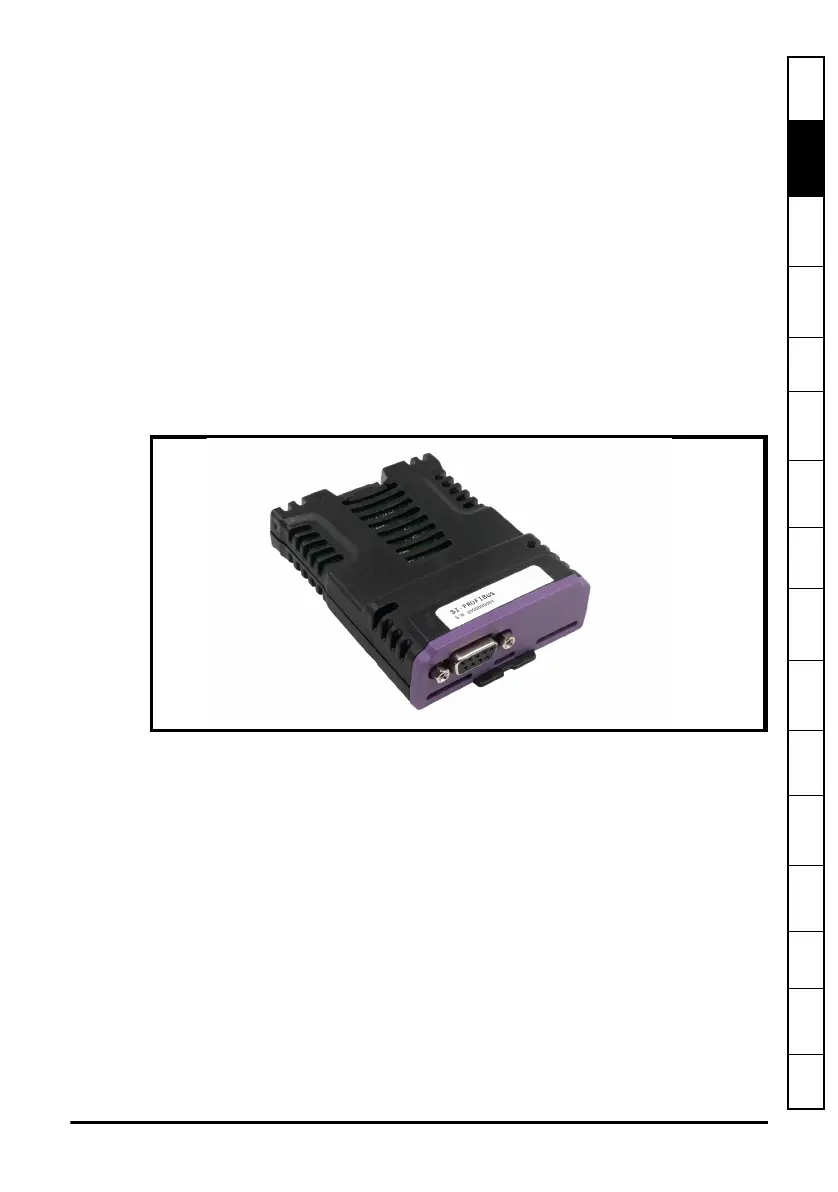

Figure 2-3 SI-PROFIBUS module
2.3 General specification
2.3.1 Features
The following section gives a brief overview of the functionality available within SI-
PROFIBUS.
• Supported data rates (bits/s): 12M, 6.0M, 3.0M, 1.5M, 500k, 187.5k, 93.75k,
45.45k, 19.2k, 9.6k.
• Maximum of 32 input and 32 output cyclic data words supported
• PROFIdrive profile (V4) supported
• DP-V1 Non-cyclic data channel supported
• Parallel acyclic/cyclic data communication
The SI-PROFIBUS is powered from the host drive’s internal power supply.
