Bend OKBend too tight

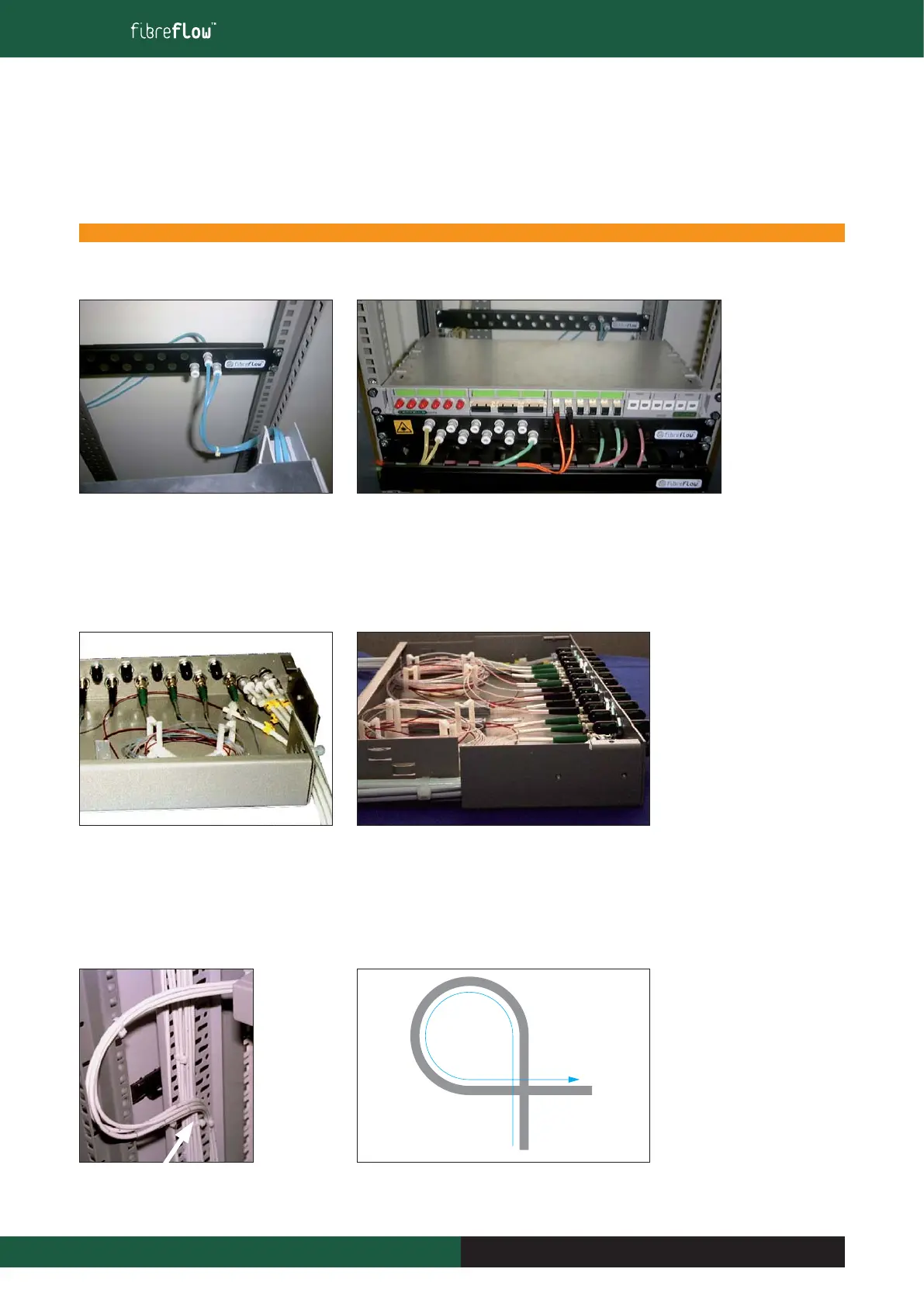

Tube Demarcation onto a 1 RU “patch panel’, using bulkhead connectors
Tubes Terminated Directly in Splice Tray
This example shows the m/ds being terminated directly in the splice enclosure. The unpopulated m/ds are simply blanked off with an end cap.
Any populated m/ds are held in place with cable ties and the fi bre unit is routed through a fi bre fan out kit before termination. Mille Ties should
be used when LFH products are installed.
NOTE:
19 inch Rack Mount m/d guide 7362 (not shown)
19 inch Rack Mount m/d Patch panel (for bulkhead connectors) 7361
When microducts as either an individual assembly or as individual microducts need to be looped or bent to re direct them, the minimum bend
radius of the product must be satisfi ed. See below.
