7.1 Straight Connectors

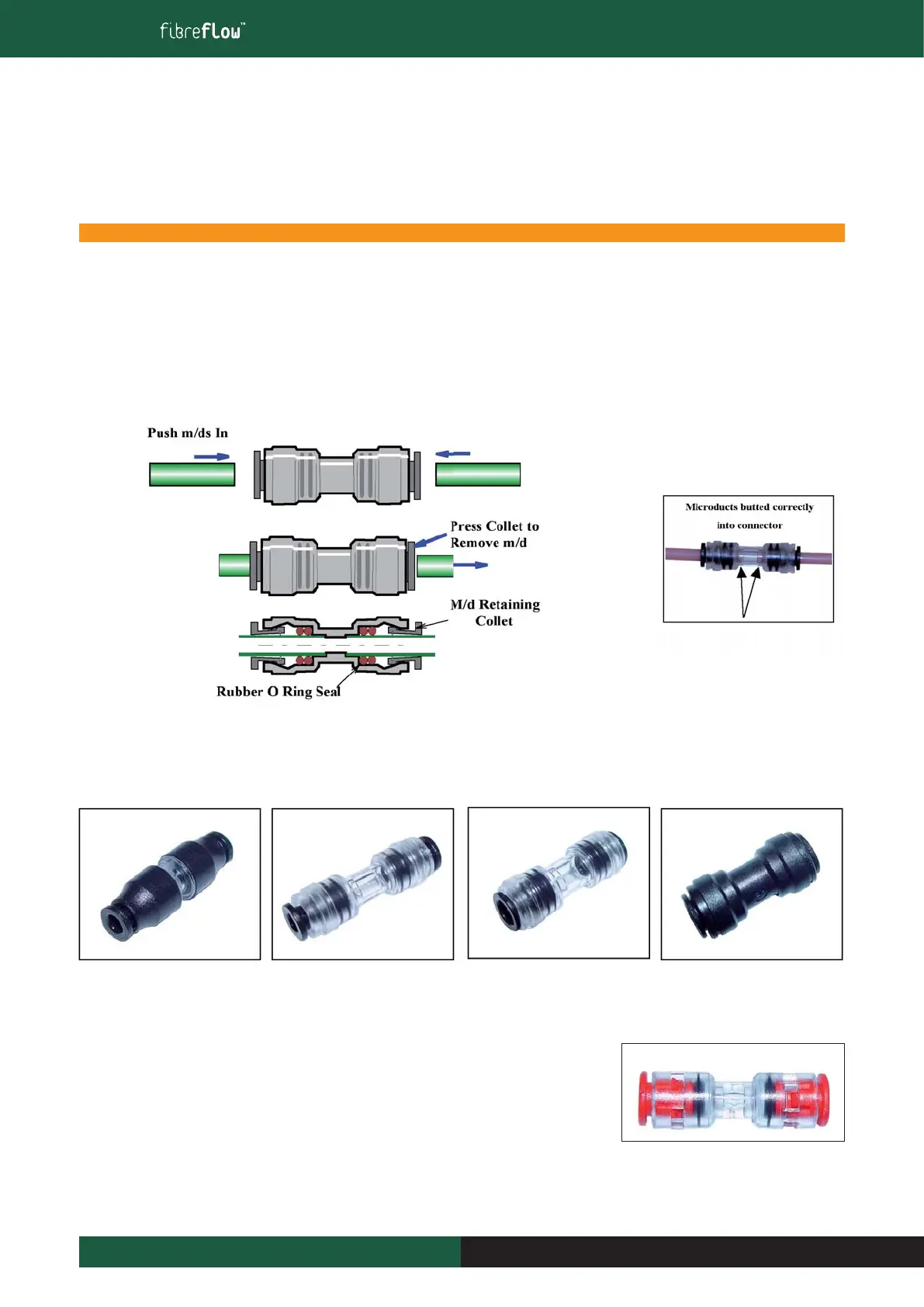

Blown fi bre connectors allow microducts to be joined seamlessly, so that the fi bre unit will still pass freely through the patch way. It is very impor-
tant to fi t the connectors correctly to avoid any loss of air pressure when the system is pressurised and also to avoid creating any gaps, which could
hinder the fi bre unit as it passes through the connector.
The m/ds must be pushed fi rmly into the connector after being cleanly cut until they go beyond the sealing rings and can be seen in the main body
of the clear connector. They will be unable to be pushed beyond this point as there is a shoulder within the connector body to stop the m/ds.
The straight connector joins two lengths of m/d of the same outer diameter, eg 5mm-to-5mm.
THE
INSTALLATION AND MAINTENANCE TRAINING MANUAL
7 Connectors
3mm ~ 9916
Correct
5mm ~ 9918 8mm ~ 9920 10mm ~ 9921
i
ht connector
oins two len
ths of m/d of the same outer diameter, e
5mm-to-5m
“This document is intended as a guide only. Whilst the information it contains is believed to be correct, Emtelle can take no responsibility for actions taken based on the information contained in this document. Emtelle reserves the
right to make changes to this document without notice. All sales of product are subject to Emtelle’s terms and conditions of sale only, which can be found on Emtelle’s website.”
56
INNOVATION AND FLEXIBILITY
NOTE: When pushing the m/d into the connector, there is resistance felt TWICE, once as the m/d hits the O-ring and again when it reaches the stop.
It is good practice to become familiar with the ‘feel’ of this ‘double action’.
Straight connectors for heavy-wall tube
Many tubes now have a smaller ID than the original. Eg As well as 8/6 tube, there is 8/5 and 8/3.5.
There is 5/2.1 / 5/2.1. As well as 10/8 tube there is 10/6. and so on. Such tubes create a ‘step-shoul-
der’ inside a normal connector, which can affect the passage of fi bre-unit through the connector. We
have introduced connectors to match these smaller IDs, and they can be ordered to suit the route.
5/2.1mm Straight Connector (7823)
