Product description Cerabar PMP21 IO-Link
10 Endress+Hauser
3 Product description
3.1 Product design

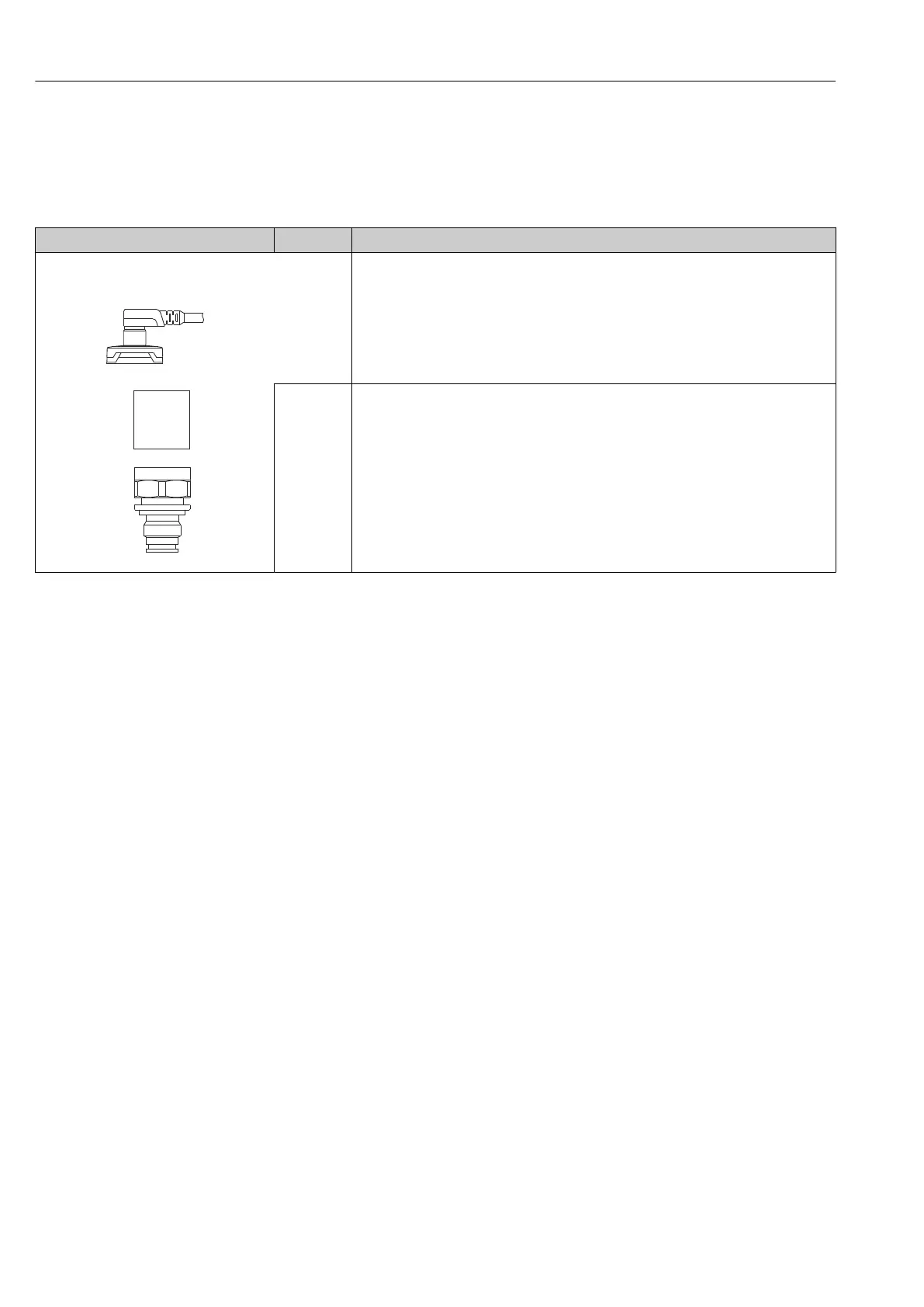

Overview Item Description
C - 1
A0021987
C- 1 M12 plug
Housing cap made of plastic
D
E
A0027215
D
E
Housing
Process connection (sample illustration)
3.2 Operating principle
3.2.1 Calculating the pressure
Devices with metallic process isolating diaphragm
The process pressure deflects the metal process isolating diaphragm of the sensor and a fill
fluid transfers the pressure to a Wheatstone bridge (semiconductor technology). The
pressure-dependent change in the bridge output voltage is measured and evaluated.
