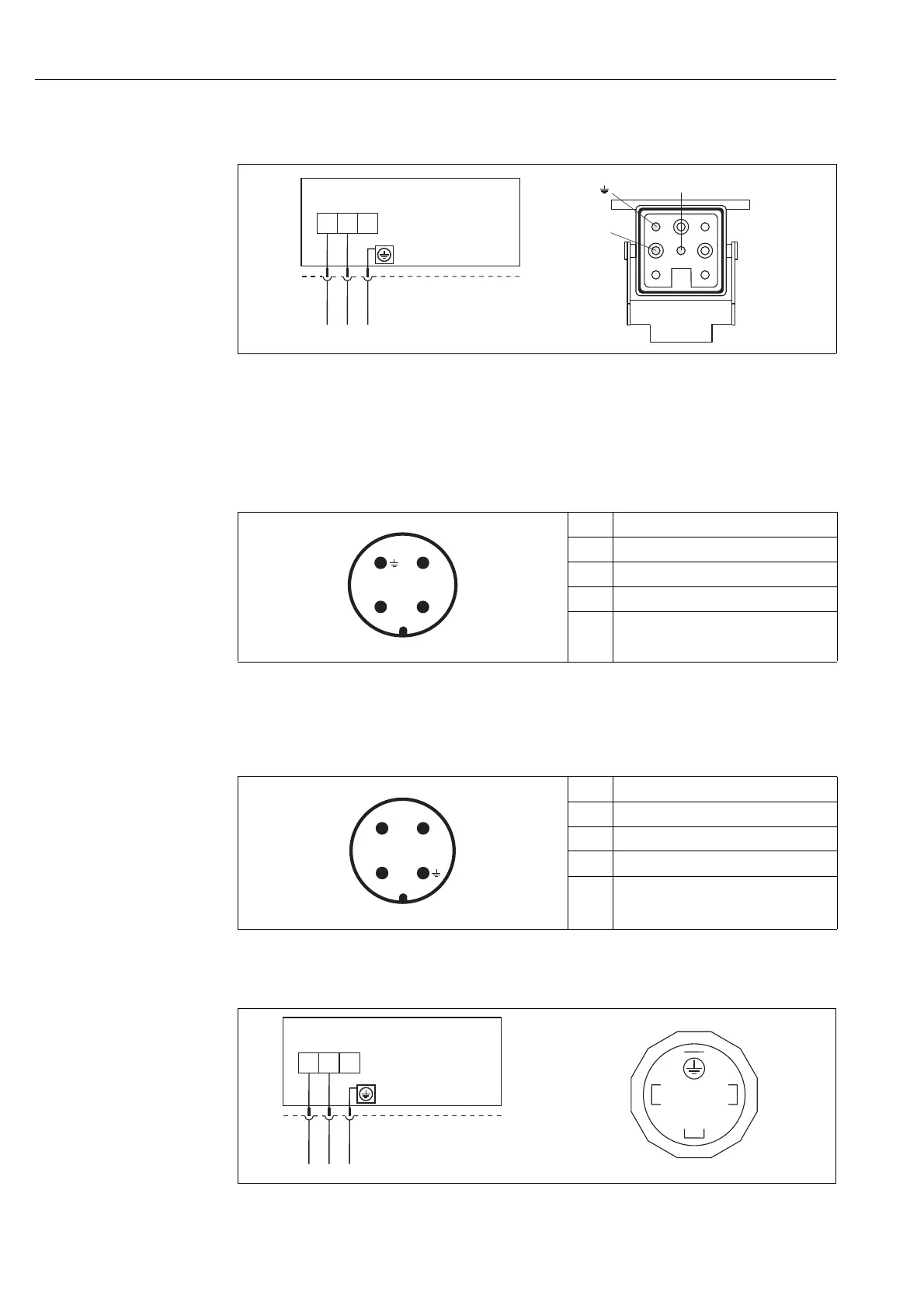

Wiring Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
32 Endress+Hauser
4.1.1 Connecting devices with a Harting connector Han7D
P01-xxx7xxxx-04-xx-xx-xx-001
Fig. 20: Left: electrical connection for devices with a Harting connector Han7D
Right: view of the connection at the device
4.1.2 Connecting devices with an M12 connector
PIN assignment for M12 connector
4.1.3 Devices with 7/8" plug
PIN assignment for 7/8" connector
4.1.4 Devices with valve connector
P01-xMx5xxxx-04-xx-xx-xx-005
Fig. 21: Left: electrical connection for devices with a valve connector
Right: view of the connector at the device
Han7D
+
+–
+
1
5
4
6
7
8
2
3
A0011175
PIN Meaning
1 Signal +
2Not assigned
3 Signal –
4Earth
A0011176
PIN Meaning
1 Signal –
2 Signal +
3Not assigned
4Earth
21
3
4
+
nc
2
1
3
4
+
nc
+
+–
+
