Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Appendix
Endress+Hauser 113
Meas. pressure (020)
Display
Displays the measured pressure after sensor recalibration, position adjustment and
damping.
Cerabar M and Deltapilot M:

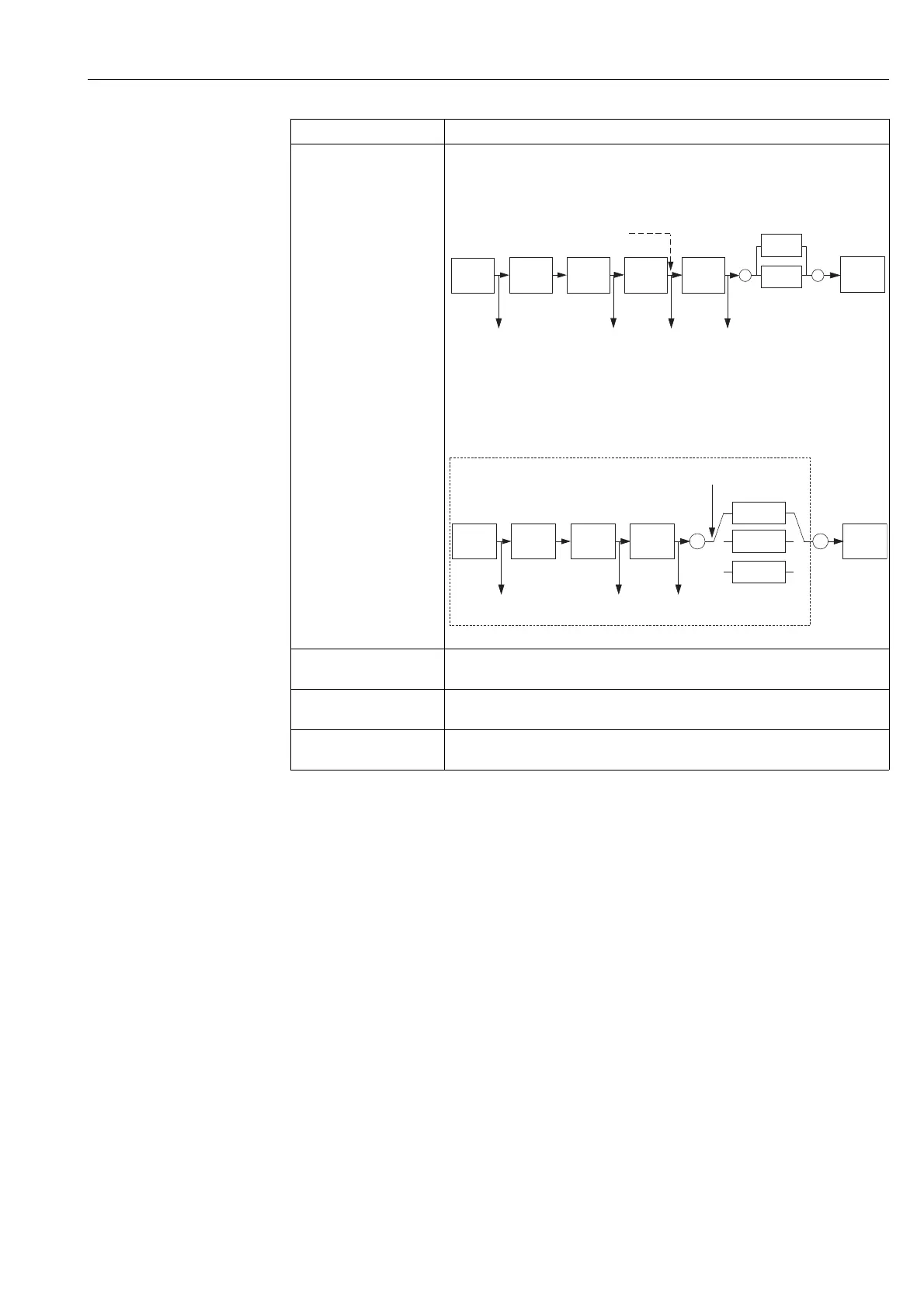

P01-FMX21xxxx-05-xx-xx-en-009
Deltabar M:
P01-PMD55xxx-05-xx-xx-en-008
Sensor pressure (109)
Display
Displays the measured pressure before the sensor trim and position adjustment.
Corrected press. (172)
Display
Displays the measured pressure after sensor trim and position adjustment.
Pressure af. damp (111)
Display
Displays the measured pressure after sensor trim, position adjustment and damping.
Parameter name Description
P
I
Sensor
Current
output
Pressure
Level
Pressure
af. damp
Damping
Corrected
Press.
Position
adjust-
ment
Sensor
trim
Sensor
pressure
Simulation value
Pressure
Measuring
pressure
Electr.
Delta P
P
PV
Sensor
pressure
Transducer Block
Sensor
Current
output
Pressure
Level
Damping
Position
adjust-
ment
Sensor
trim
Flow
Corrected
pressure
Pressure
after damping
Meas.
pressure
