Operation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
38 Endress+Hauser
5Operation
5.1 Operating options
5.1.1 Operation without operating menu
5.1.2 Operation with operating menu
Operation with an operating menu is based on an operation concept with "user roles" ä 41.

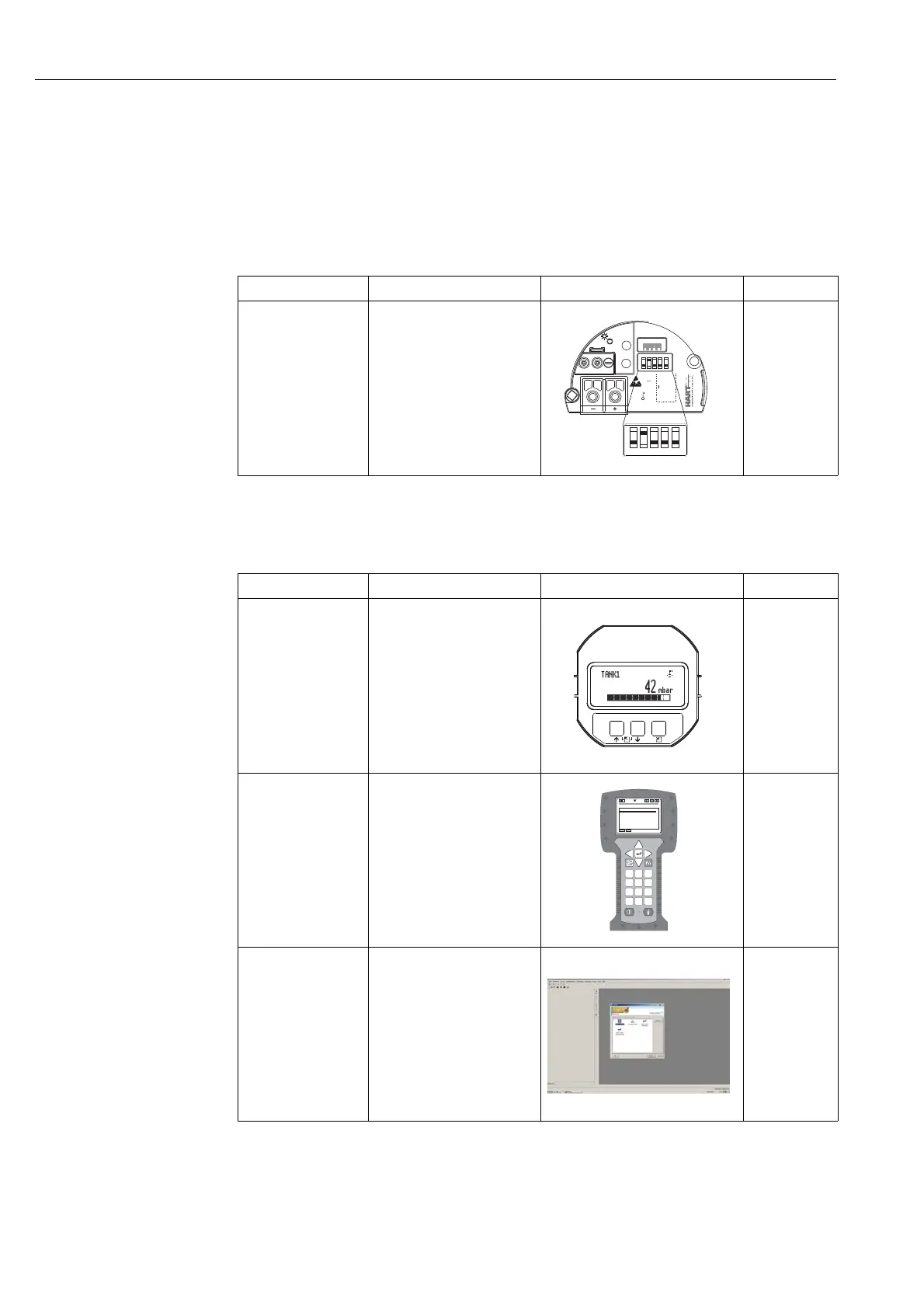

Operating options Explanation Graphic illustration Description
Local operation without
device display
The device is operated using the
operating keys and DIP switches
on the electronic insert.
ä 39
Operating options Explanation Graphic illustration Description
Local operation
with device display
The device is operated using the
operating keys on the device
display.
ä 43
Remote operation via
HART handheld
terminal
The device is operated using the
HART handheld terminal (e.g.
DXR375).
ä 48
Remote operation via
FieldCare
The device is operated using the
FieldCare operating tool.
ä 48
on
off
1
2
345
on
off
Display
Zero
Span
SW / P2=Hig
h
delta p only
SW / Alarm min
SW / Ö
damping
E
+
1
# % &
Copy
G H I
P Q R S
, ( )‘
A B C
Paste
Page
On
Page
Up
DeleteBksp
Insert
J K L
T UV
_ < >
D E F
Hot Key
+ Hot Key
M N O
W XY Z
+ * /
4
7
.
2
5
8
0
375
FIELD COMMUNICATOR
3
6
9
-
9
6
DELTABAR:* * * * * * * *
ONLINE
1 QUICK SETUP
2 OPERATING MENU
4 SV 0 °C
3 PV 352 mbar
HELP SAVE
dsdmdm
df das.
asdas fa
asas la.
