Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART Operation
Endress+Hauser 43
5.3.3 Operation with a device display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The local display shows
measured values, dialog texts, fault messages and notice messages.

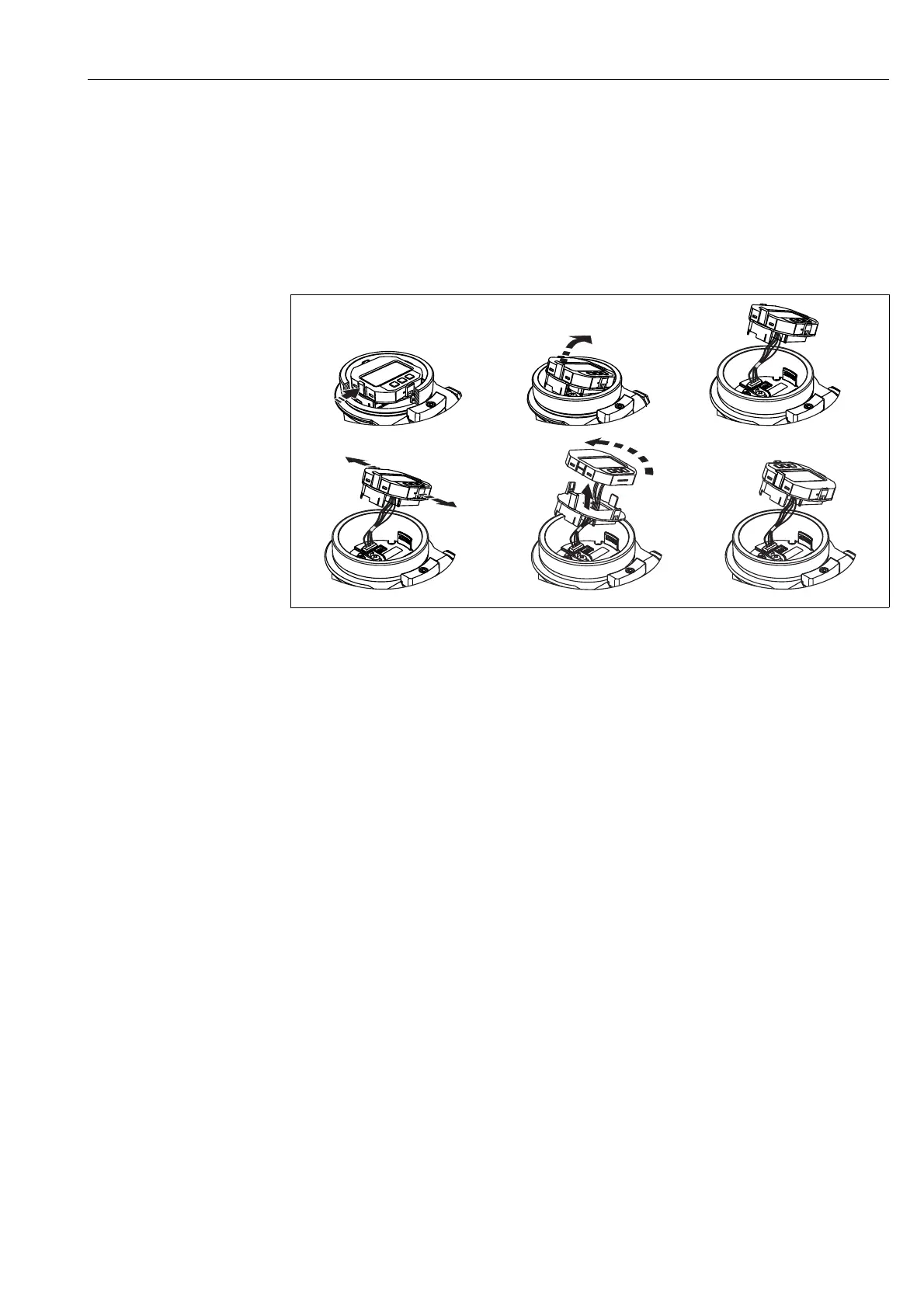

For easy operation the display can be taken out of the housing (see figure steps 1 to 3). It is
connected to the device through a 90 mm (3.54 in) cable.
The display of the device can be turned in 90° stages (see figure steps 4 to 6).
Depending on the orientation of the device, this makes it easy to operate the device and read the
measured values.
P01-Mxxxxxxx-19-xx-xx-xx-008
Functions:
• 8-digit measured value display including sign and decimal point, bargraph for 4 to 20 mA HART
as current display
• Three keys for operation
• Simple and complete menu guidance as parameters are split into several levels and groups
• Each parameter is given a 3-digit parameter code for easy navigation
• Possibility of configuring the display to suit individual requirements and preferences, such as
language, alternating display, contrast setting, display of other measured values such as sensor
temperature etc.
• Comprehensive diagnostic functions (fault and warning message etc.)
