Operation Cerabar M, Deltabar M, Deltapilot M / 4...20 mA HART
44 Endress+Hauser
P01-Mxxxxxxx-07-xx-xx-xx-002

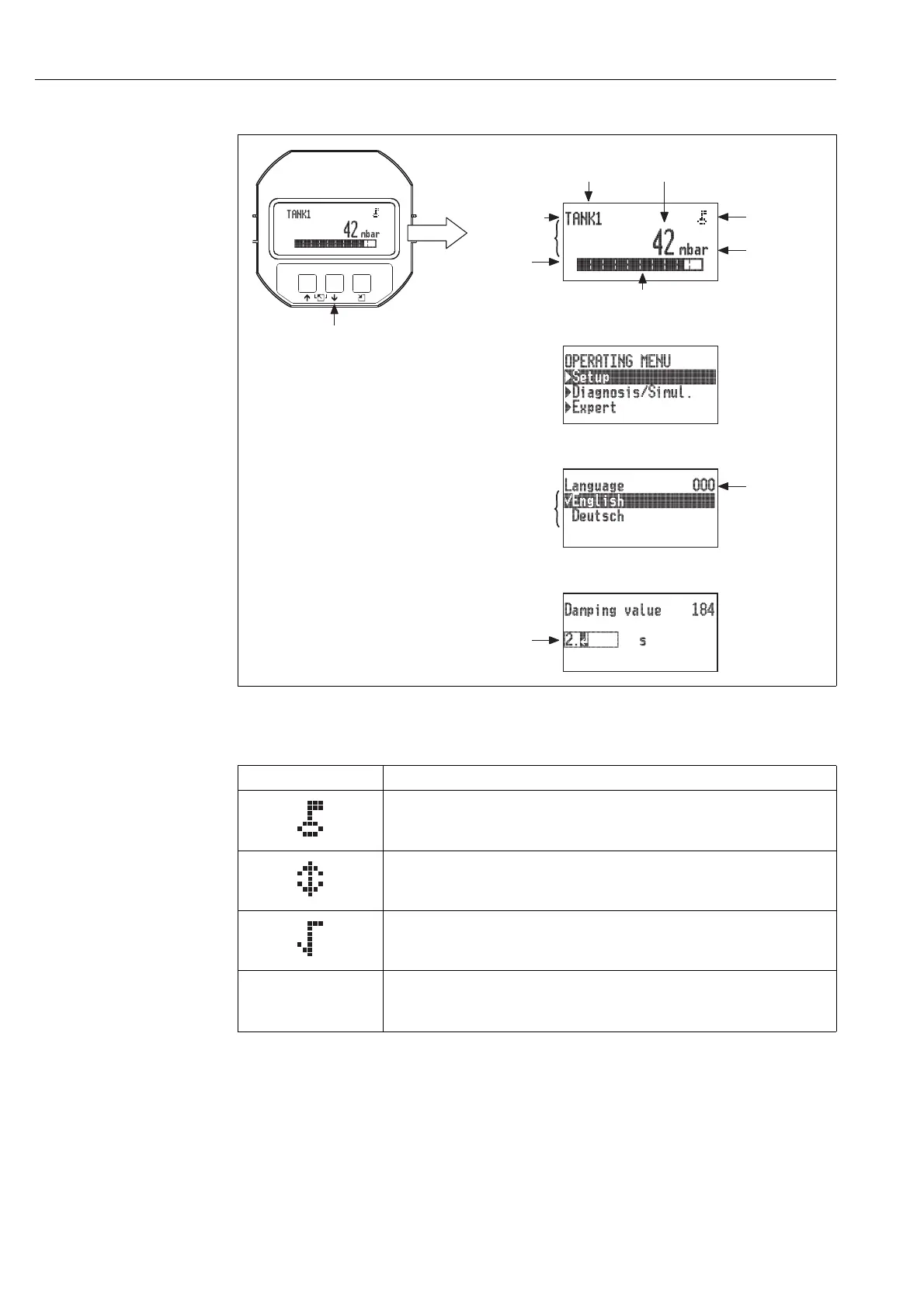

The following table illustrates the symbols that can appear on the local display. Four symbols can
occur at one time.
Symbol Meaning
Lock symbol
The operation of the device is locked. To unlock the device, ä 49, Locking/unlocking
operation.
Communication symbol
Data transfer via communication
Square root symbol
Active measuring mode "Flow measurement"
The root flow signal is used for the current output.
Error message "Out of specification"
The device is being operated outside its technical specifications (e.g. during warmup or
cleaning processes).
E
+
–
Symbol
Operating keys
ValueDevice tag
Measured value display
Unit
Bargraph
Operating menu
Parameter with selection list
Freely editable parameter
Direct
Access
Code
Value that
can be
edited
Selection
options
Header line
Information
line
Main line
