16

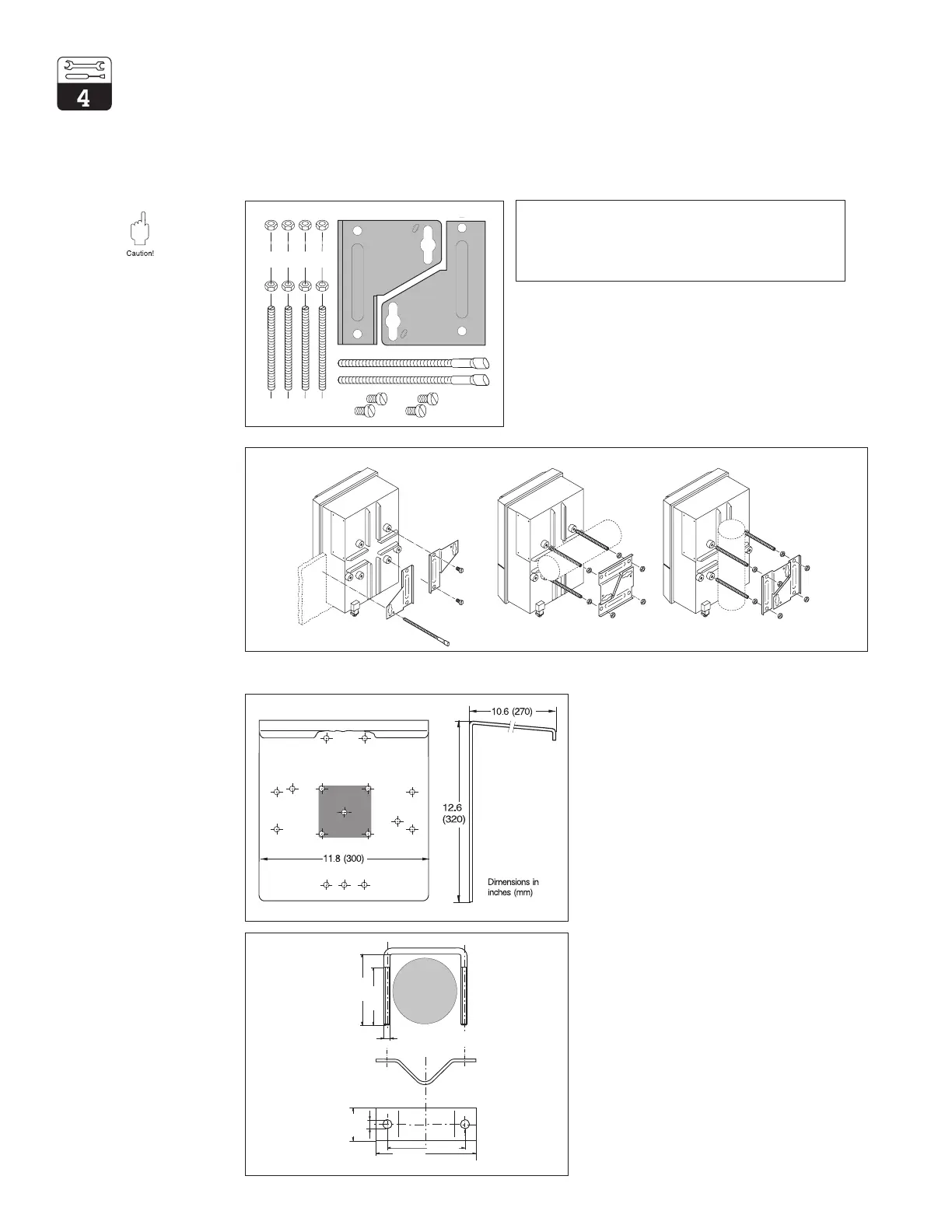

Post Mounting and Panel Installation (Mounting Version B)
Attach the parts of the mounting kit supplied with the mounting version B to the back of
the housing, as shown in Figure 4.2:
Cut-out required: 6.34
+.02
x 9.49
+.02
(161
+0.5
x 241
+0.5
mm)
Installation depth: 5.26² (134 mm)
Pipe diameter: max. 2.76² (70 mm)
Caution!
Weather protection cover CYY 101 has to be
used for outdoor installation (see Mounting
accessories below).
Figure 4.2
Mounting kit for panel
installation and post
mounting
(order no. 50061357)
Figure 4.3
¬ Panel installation
 Post mounting of
Mycom CLM 152
¬
Mounting Accessories
Weather protection cover CYY 101 for
outdoor installation of the Mycom CLM
152.
The weather protection cover post
mounting kit (see Fig. 4.5) is also
needed for installation on vertical or
horizontal pipes.
Material: stainless steel
Order no. CYY101-A
Round post mounting kit for weather
protection cover CYY 101. For
installation on vertical or horizontal
pipes with diameters of up to 2.75 in.
(70 mm).
Material: stainless steel
Order no. 50062121
2.60
(66)
2.17
(55)
M6
1.18
(30)
dia. .31 (8)
3.54 (90)
2.76 (70)
Figure 4.4
Weather protection cover
Figure 4.5
Round post mounting kit
for weather protection
cover CYY 101
