32

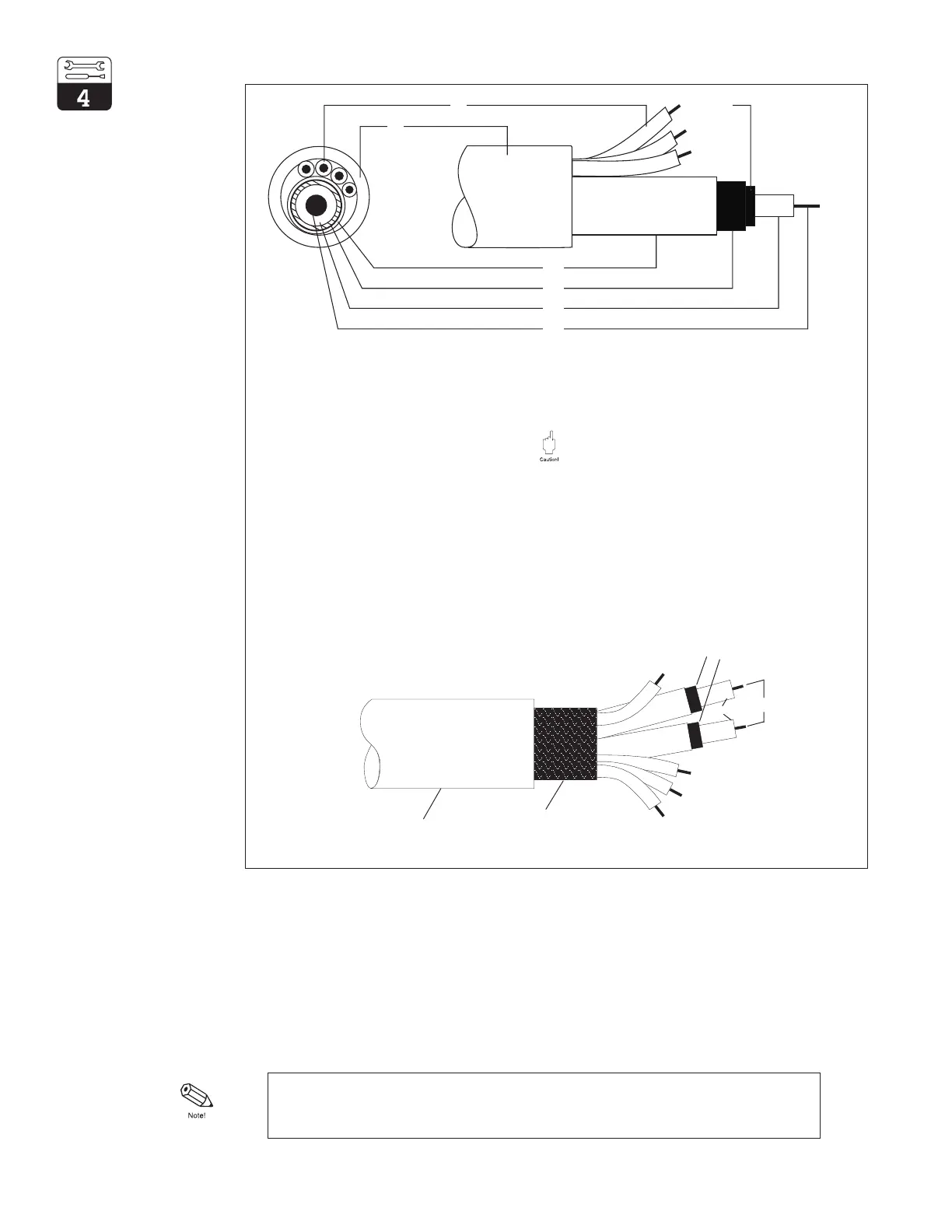

Construction and Preparation of Cable CYK71 and CYK5
¬
¯
°
®
²
³
¬ Inner conductor (measuring signal)
Internal insulation
® Black semiconductor layer
Caution!
Strip semiconductor layer to inner screen for
connection!
¯ Inner shield (alternating measuring voltage)
° Second insulation
± Outer shield (PE)
² Outer insulation
³ Auxiliary cores for Pt 100
Figure 4.24
Construction / preparation
of special measuring cable
CYK5
4.6 Packaging and Disposal
Packaging
The packaging material used to store or transport the instrument must provide shock and
moisture protection. Optimal protection is provided by the original packaging materials.
Disposal
Note!
Electronic components to be disposed of are to be considered special waste.
Observe local regulations for disposal.
¬
²
³
±
¯
