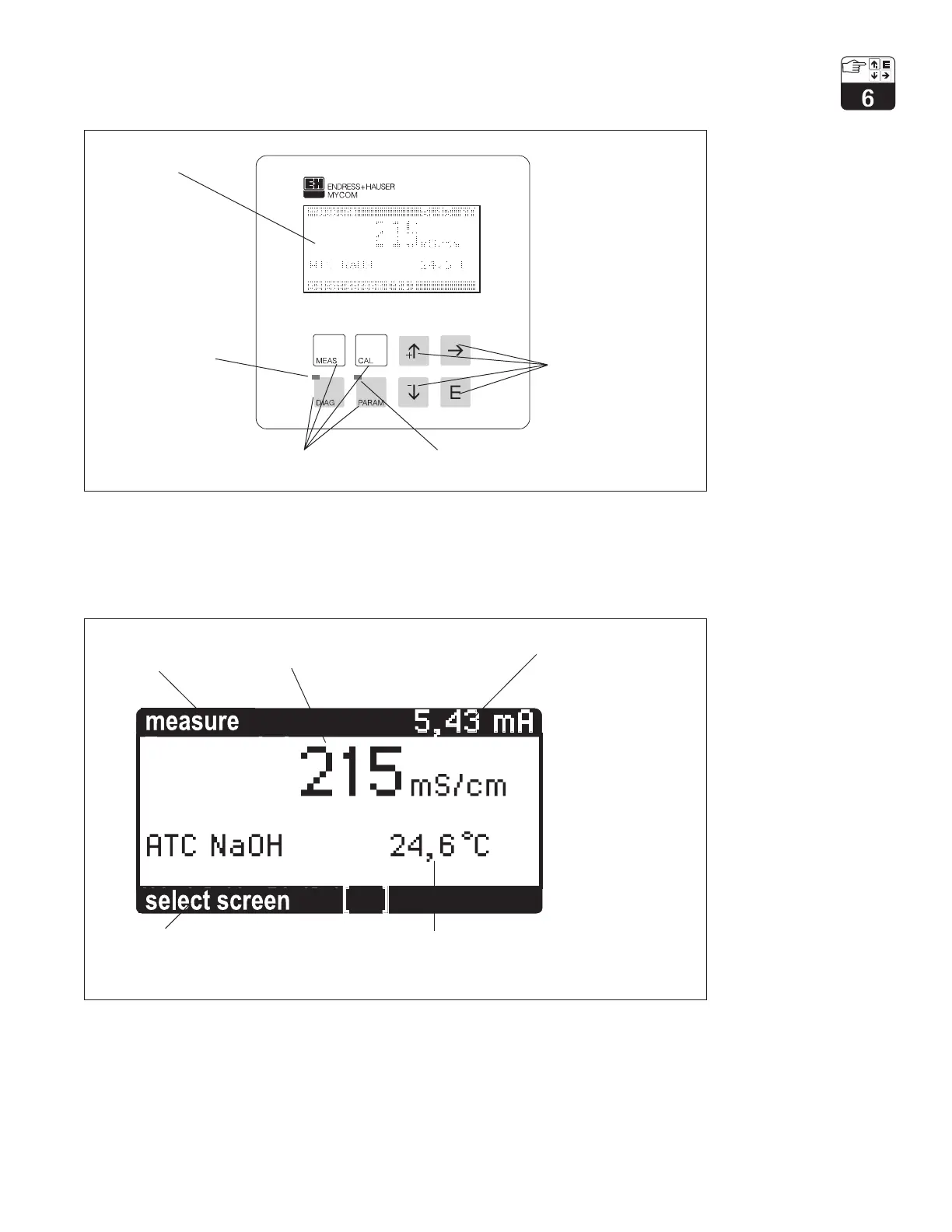

Figure 6.1
Operating elements
Mycom CLM 152 Toroidal
Figure 6.2
Display
Mycom CLM 152 Toroidal
6 Operation
6.1 Operating Elements
Liquid crystal
display
Status indication LED
Green: Normal operation
Red: Acute fault
4 keys for
instrument configuration
LED with no function
4 keys for calling up
the main groups
6.2 Display
Operating mode or
current measured
value
Main measured value (in measuring mode) or
parameters (e.g. in calibration, configuration)
Present current value
on current output 1 or
Hold indication
Additional information:
 Secondary measured values, relay status, etc.
(measuring mode)
 Input range (calibration, configuration)
Notes on key functions:
The arrow symbols indicate scrolling is
possible in the menu displayed or whether
the numeric value displayed can be changed.
