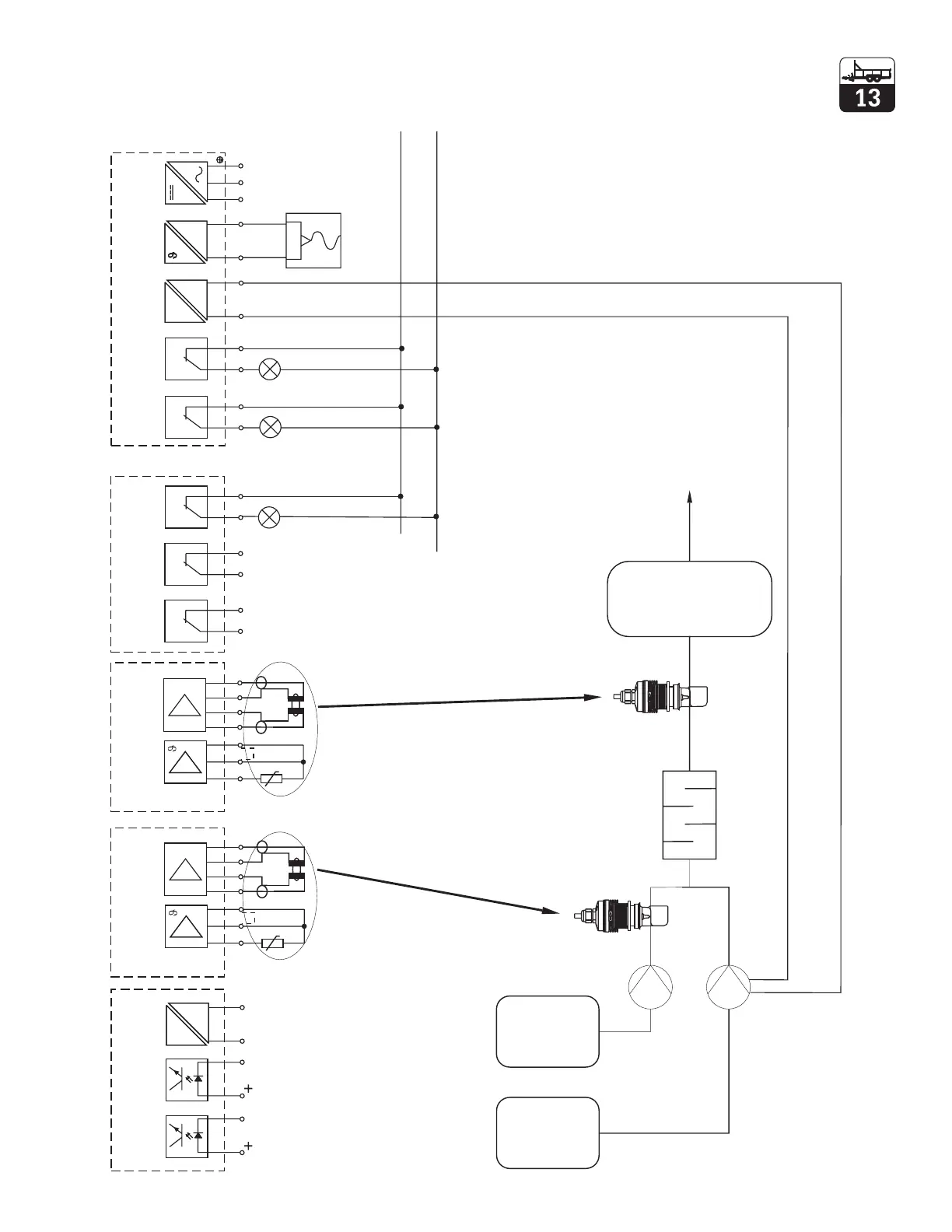

13.3.2 Difference Measurement for Juice Production
Binary inputs Analog input
FCXI
mA
Temp.
Power supply
Conductivity
measuring cell 1
with Pt 100
Conductivity
measuring cell 2
with Pt 100
Failure
Maint. requirement
Function check
Degassed
water
Concentrated
juice
Finished
product
CLS 52
+
-
+
-
Cdf
mA
mA
Failure
Conductivity Temperature
Contact 1
Mains
FCGA
Contact 4
Contact 3
Contact 2
FCYK
81 82 83 84 21 22
87 88 85 86 31 32 33 34 L N PE
94 93 92 91 90 89
Temperature Conductivity
Temperature Conductivity
FCL1 (1)
FCL1 (2)
11 12 13 14 15 16 17
11 12 13 14 15 16 17
Lf
Lf
CLS 52
A maximum of four (4) boards can be selected.
