Enerdis C.A 2150-E - DC; Ac Voltage Input Wiring (Ranges: 2, 20, 200, 600 V)

13

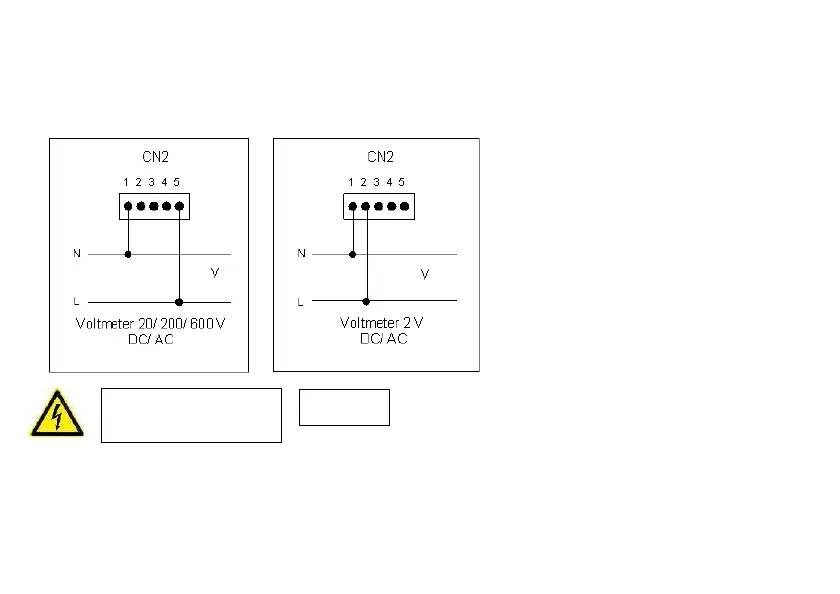

3.1 DC/ AC VOLTAGE INPUT WIRING (RANGES: 2, 20, 200, 600 V)
Note: MAXIMUM TENSION APPLICABLE IS: 600 V DC/ AC
If the input range is not superior to 2 V then specific input for 2 V can be used with wiring indicated in figure 2
Description CN2
PIN 1 = COMMUN
PIN 2 = SHUNT/ 2 V
PIN 3 = 200 mA
PIN 4 = 1A / 5A
PIN 5 = 20/ 200/ 600 V
Read recommendations
page 10
Figure 2
