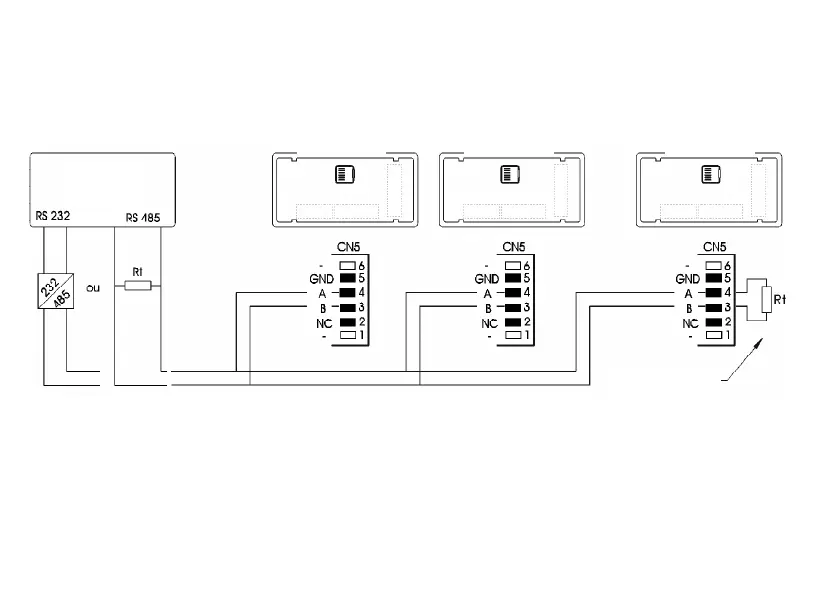

7.2.3 Connection in a network by RS485 link
One can link in network until 31 indicators C.A 2150 or C.A 2200 (all confused models) on a device master. Every informer will have to have
a unique address, understood between 00 and 99. The address 00 common east to all the devices of the network: she will be used for
example to send a simultaneous order of discount to zero of the memories MIN, MAX or OFFSET.
C.A 2150 #
##
# 1 C.A 2150 #
##
# 2 C.A 2150 #
##
# N
JUST FOR THE LAST
C.A 2150
MASTER
• Information concerning the line resistor, see following page.
