Enerdis C.A 2150-E - Wiring

41
7.2.2 Wiring

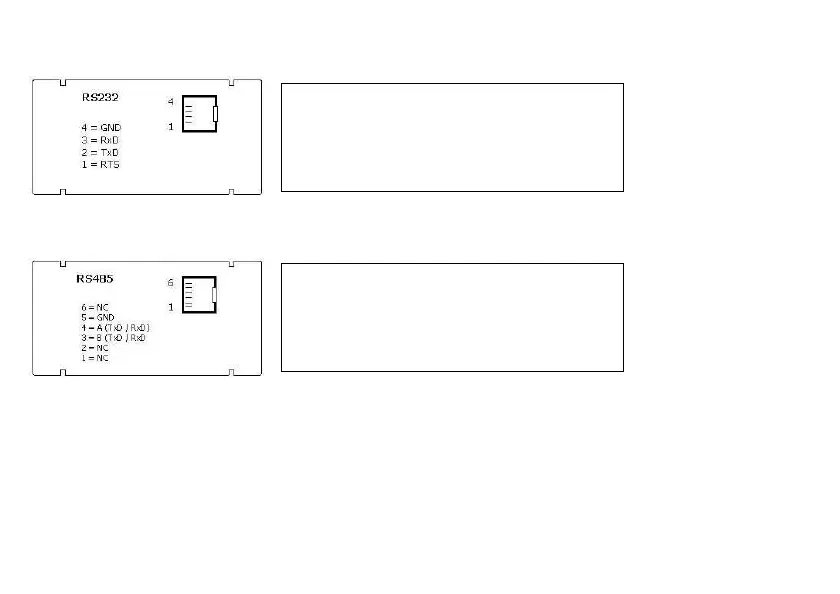

The liaison RS 232C allows linking an indicator CA
2150 to a device master, to a computer for example.
(Connector type RJ9)
The liaison RS 485 permit to link in network until 31
indicators CA 21
50 or CA 2200 to a device master.
Connection in network see following page.
(Connector type RJ11)
