7.3.4 Technical specifications
CARACTÉRISTICS Analog Ouput 4-20mA Analog Ouput 0-10V
RESOLUTION 13 BITS 13 BITS
ACCURACY 0.1% P.E. ±1BIT 0.1% P.E. ±1BIT
RESPONSE TIME 50 ms 50 ms
THERMAL DRIFT 0.5 µA/ºC 0.2 mV/ºC
MAXIMUM LOAD <= 500 Ω >=10 KΩ

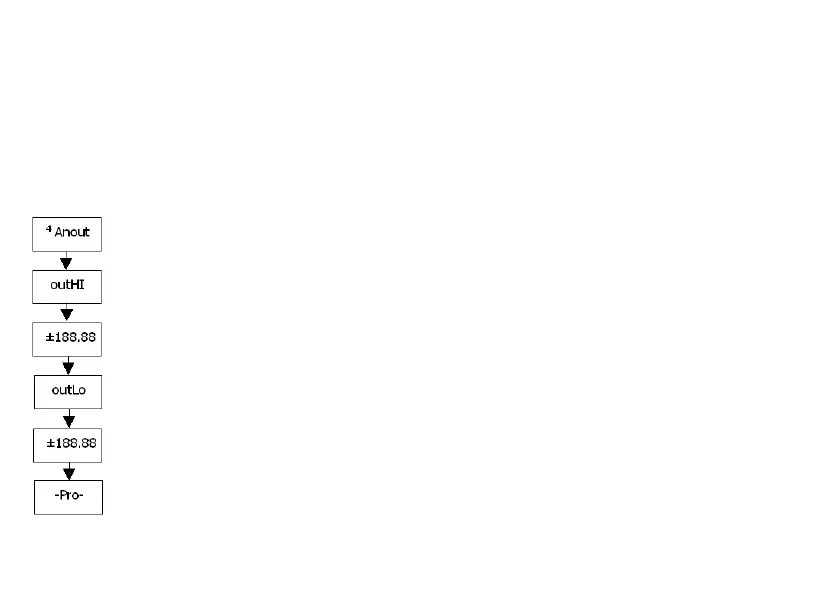

7.3.5 Analog output menu diagram
Display value for
20 mA analog output / 10 V analog output
Display value for
4 mA anal
og output / 0 V analog output
