Enerdis C.A 2150-E - SHUNT 50; 60; 100 MV DC; AC WIRING

17

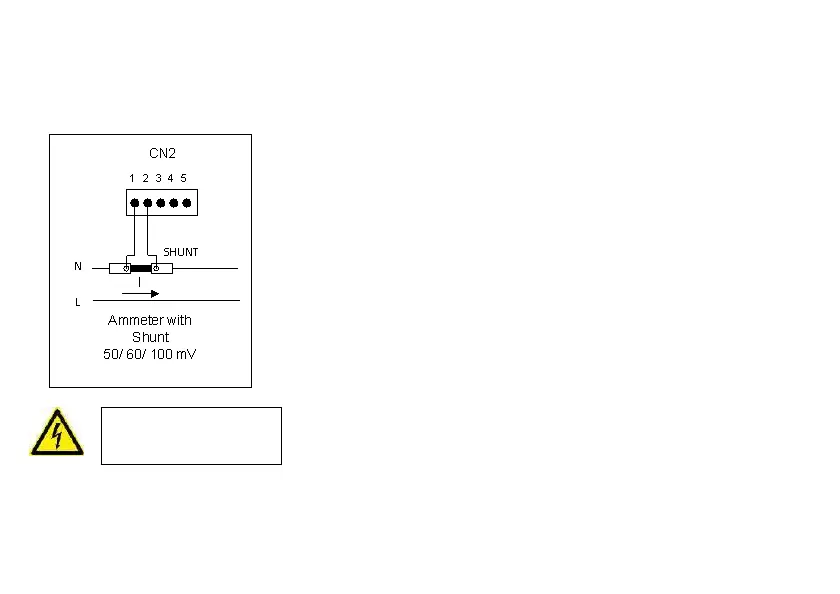

3.5 SHUNT 50/ 60/ 100 mV DC/ AC WIRING
NOTE: we recommend braiding the cables used to wire the shunt to the instrument in order to avoid as much as possible to pick-
up interferences.
Description CN2
PIN 1 = COMMUN
PIN 2 = SHUNT/ 2 V
PIN 3 = 200 mA
PIN 4 = 1A / 5A
PIN 5 = 20/ 200/ 600 V
Read recommendations
page 10
